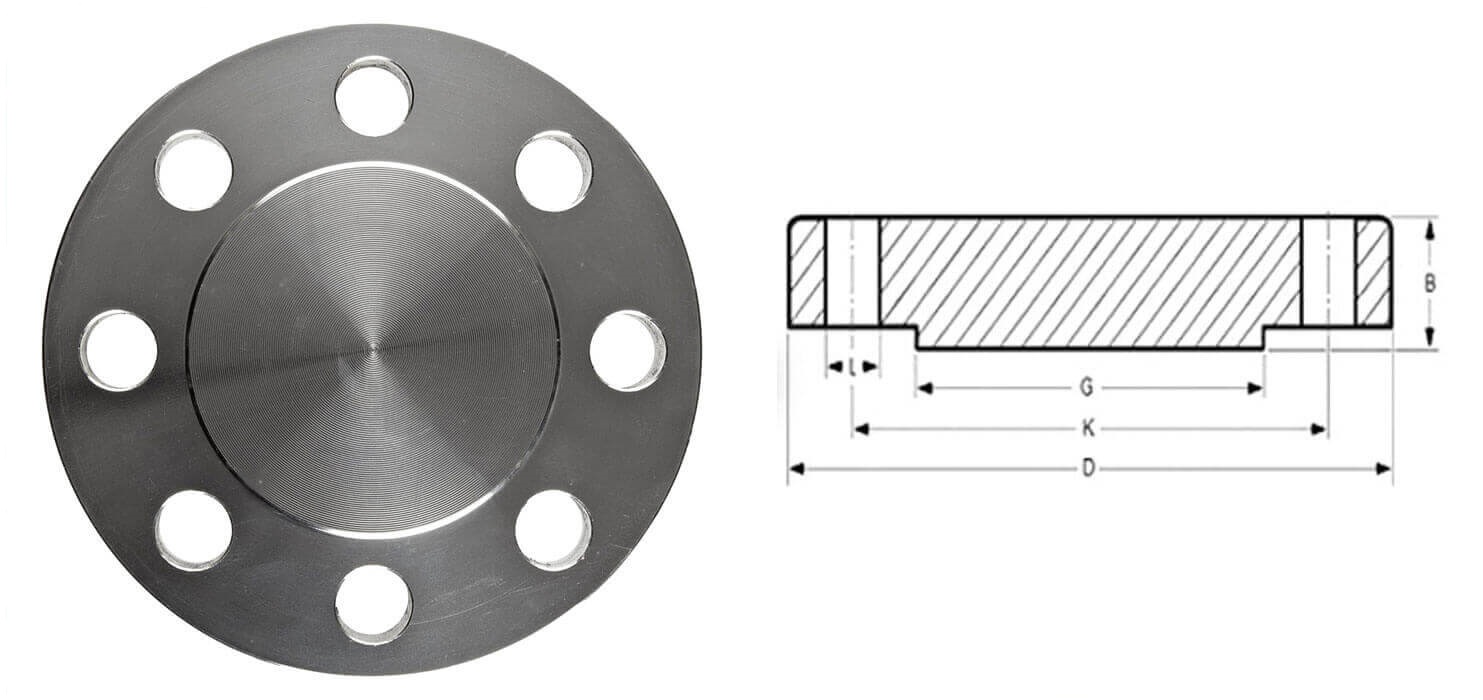

| FLANGE BLIND FLANGES CLASS 150 LB ASTM A182/ANSI B16.5 | |||||||
|---|---|---|---|---|---|---|---|
| PIPE | FLANGE DATA | RAISED FACE |
DRILLING DATA | ||||
Nominal Pipe Size (inches) |
Outside Diameter |
A | C | G | H | I | J |
Overall Diameter |
Flange Thickness Min |
Face Diameter |
Number Of Holes |
Bolt Hole Diameter |
Diameter of Circles of Holes |
||
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
||
| 1/2 | 0.840 21.30 |
3.500 88.90 |
0.440 11.20 |
1.380 35.10 |
4 | 0.620 15.70 |
2.380 60.45 |
| 3/4 | 1.050 26.70 |
3.880 98.60 |
0.500 12.70 |
1.690 42.90 |
4 | 0.620 15.70 |
2.750 69.85 |
| 1 | 1.315 33.40 |
4.250 108.0 |
0.560 14.20 |
2.000 50.80 |
4 | 0.620 15.70 |
3.120 79.25 |
| 1-1/4 | 1.660 42.20 |
4.620 117.3 |
0.620 15.70 |
2.500 63.50 |
4 | 0.620 15.70 |
3.500 88.90 |
| 1-1/2 | 1.900 48.30 |
5.000 127.0 |
0.690 17.50 |
2.880 73.15 |
4 | 0.620 15.70 |
3.880 98.60 |
| 2 | 2.375 60.30 |
6.000 152.4 |
0.750 19.10 |
3.620 91.90 |
4 | 0.750 19.10 |
4.750 120.7 |
| 2-1/2 | 2.875 73.00 |
7.000 177.8 |
0.880 22.40 |
4.120 104.6 |
4 | 0.750 19.10 |
5.500 139.7 |
| 3 | 3.500 88.90 |
7.500 190.5 |
0.940 23.90 |
5.000 127.0 |
4 | 0.750 19.10 |
6.000 152.4 |
| 3-1/2 | 4.000 101.6 |
8.500 215.9 |
0.940 23.90 |
5.500 139.7 |
8 | 0.750 19.10 |
7.000 177.8 |
| 4 | 4.500 114.3 |
9.000 228.6 |
0.940 23.90 |
6.190 157.2 |
8 | 0.750 19.10 |
7.500 190.5 |
| 5 | 5.563 141.3 |
10.00 254.0 |
0.940 23.90 |
7.310 185.7 |
8 | 0.880 22.40 |
8.500 215.9 |
| 6 | 6.625 168.3 |
11.00 279.4 |
1.000 25.40 |
8.500 215.9 |
8 | 0.880 22.40 |
9.500 241.3 |
| 8 | 8.625 219.1 |
13.50 342.9 |
1.120 28.40 |
10.62 269.7 |
8 | 0.880 22.40 |
11.75 298.5 |
| 10 | 10.75 273.0 |
16.00 406.4 |
1.190 30.20 |
12.75 323.8 |
12 | 1.000 25.40 |
14.25 362.0 |
| 12 | 12.75 323.8 |
19.00 482.6 |
1.250 31.75 |
15.00 381.0 |
12 | 1.000 25.40 |
17.00 431.8 |
| 14 | 14.00 355.6 |
21.00 533.4 |
1.380 35.10 |
16.25 412.8 |
12 | 1.120 28.40 |
18.75 476.3 |
| 16 | 16.00 406.4 |
23.50 596.9 |
1.440 36.60 |
18.50 469.9 |
16 | 1.120 28.40 |
21.25 539.8 |
| 18 | 18.00 457.2 |
25.00 635.0 |
1.560 39.60 |
21.00 533.4 |
16 | 1.250 31.75 |
22.75 577.9 |
| 20 | 20.00 508.0 |
27.50 698.5 |
1.690 42.90 |
23.00 584.2 |
20 | 1.250 31.75 |
25.00 635.0 |
| 24 | 24.00 609.6 |
32.00 812.8 |
1.880 47.80 |
27.25 692.2 |
20 |
1.380 35.10 |
29.50 749.3 |

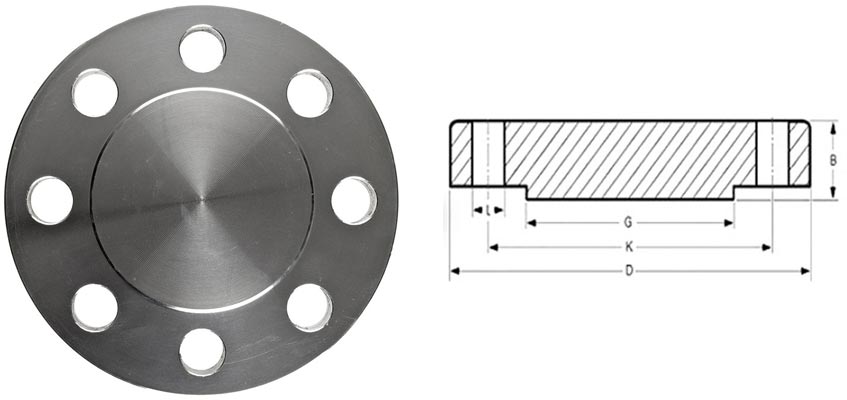

| FLANGE BLIND FLANGES CLASS 300 LB ASTM A182/ANSI B16.5 | |||||||
|---|---|---|---|---|---|---|---|
| PIPE | FLANGE DATA | RAISED FACE |
DRILLING DATA | ||||
Nominal Pipe Size (inches) |
Outside Diameter |
A | C | G | H | I | J |
Overall Diameter |
Flange Thickness Min |
Face Diameter |
Number Of Holes |
Bolt Hole Diameter |
Diameter of Circles of Holes |
||
in mm |
in mm |
in mm |
in mm |
in mm |
in mm |
||
| 1/2 | 0.84 21.30 |
3.75 95.20 |
0.560 14.20 |
1.380 35.10 |
4 | 0.620 15.70 |
2.620 66.55 |
| 3/4 | 1.050 26.70 |
4.620 117.3 |
0.620 15.70 |
1.690 42.90 |
4 | 0.750 19.10 |
3.250 82.50 |
| 1 | 1.315 33.40 |
4.880 123.9 |
0.690 17.50 |
2.000 50.80 |
4 | 0.750 19.10 |
3.500 88.90 |
| 1-1/4 | 1.660 42.20 |
5.250 133.3 |
0.750 19.00 |
2.500 63.50 |
4 | 0.750 19.10 |
3.880 98.60 |
| 1-1/2 | 1.900 48.30 |
6.120 155.4 |
0.810 20.60 |
2.880 73.15 |
4 | 0.880 22.40 |
4.500 114.3 |
| 2 | 2.375 60.30 |
6.500 165.1 |
0.880 22.30 |
3.620 91.90 |
8 | 0.750 19.10 |
5.000 120.7 |
| 2-1/2 | 2.875 73.00 |
7.500 190.5 |
1.000 25.40 |
4.120 104.6 |
8 | 0.880 22.40 |
5.880 149.4 |
| 3 | 3.500 88.90 |
8.250 209.5 |
1.120 28.40 |
5.000 127.0 |
8 | 0.880 22.40 |
6.620 168.1 |
| 3-1/2 | 4.000 101.6 |
9.000 228.6 |
1.190 30.20 |
5.500 139.7 |
8 | 0.880 22.40 |
7.250 184.2 |
| 4 | 4.500 114.3 |
10.00 254.0 |
1.250 31.70 |
6.190 157.2 |
8 | 0.880 22.40 |
7.880 200.1 |
| 5 | 5.563 141.3 |
11.00 279.4 |
1.380 35.00 |
7.310 185.7 |
8 | 0.880 22.40 |
9.250 234.9 |
| 6 | 6.625 168.3 |
12.50 317.5 |
1.440 36.50 |
8.500 215.9 |
12 | 0.880 22.40 |
10.62 269.7 |
| 8 | 8.625 219.1 |
15.00 381.0 |
1.620 41.10 |
10.62 269.7 |
12 | 1.000 25.40 |
13.00 330.2 |
| 10 | 10.75 273.0 |
17.50 444.5 |
1.880 47.70 |
12.75 323.8 |
16 | 1.120 28.40 |
15.25 387.3 |
| 12 | 12.75 323.8 |
20.50 520.7 |
2.000 50.80 |
15.00 381.0 |
16 | 1.250 31.70 |
17.75 450.8 |
| 14 | 14.00 355.6 |
23.00 584.2 |
2.120 53.80 |
16.25 412.8 |
20 | 1.250 31.70 |
20.25 514.4 |
| 16 | 16.00 406.4 |
25.50 647.7 |
2.250 57.15 |
18.50 469.9 |
20 | 1.380 35.00 |
22.50 571.5 |
| 18 | 18.00 457.2 |
28.00 711.2 |
2.380 60.45 |
21.00 533.4 |
24 | 1.380 35.00 |
24.75 628.7 |
| 20 | 20.00 508.0 |
30.50 774.7 |
2.500 63.50 |
23.00 584.2 |
24 | 1.380 35.00 |
27.00 685.7 |
| 24 | 24.00 609.6 |
36.00 914.4 |
2.750 69.85 |
27.25
692.2 |
24 |
1.620 41.00 |
32.00 812.8 |
