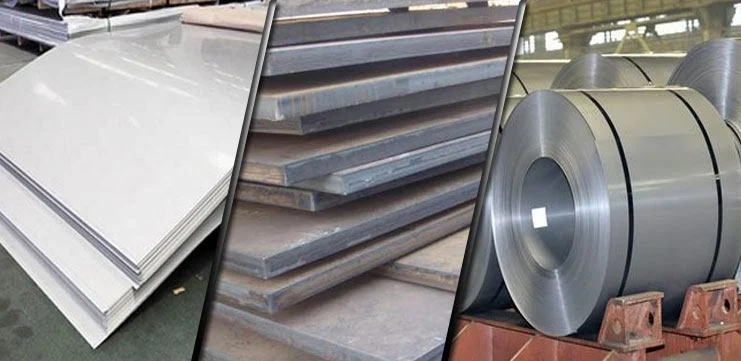

Monel 500 Sheets,Plates and Coils
Monel 500 sheets, plates, and coils are manufactured in various thicknesses and widths to meet customer requirements. Hot-rolled, cold-rolled, and polished finishes are available, along with custom dimensions and tolerances. This versatility allows engineers and fabricators to use Monel 500 for a wide variety of components, from thin foils and coils to thick structural plates..
Mechanically, Monel 500 sheets, plates, and coils exhibit a tensile strength ranging from approximately 930–1100 MPa, with a yield strength around 690 MPa in the aged condition. Elongation typically ranges between 15–25%, and hardness in the Rockwell C scale reaches 30–40 HRC. These properties, combined with a density of about 8.44 g/cm³ and non-magnetic behavior, make the material suitable for critical industrial applications..
The applications of Monel 500 sheets, plates, and coils are diverse and include marine equipment such as pumps, impellers, and propeller shafts; chemical processing equipment like tanks, heat exchangers, and valves; oil and gas components including drill collars and offshore equipment; as well as fasteners, springs, and structural elements exposed to corrosive conditions. The combination of high strength, corrosion resistance, and non-magnetic properties ensures long service life in demanding environments..
The applications of Monel 500 sheets, plates, and coils are diverse and include marine equipment such as pumps, impellers, and propeller shafts; chemical processing equipment like tanks, heat exchangers, and valves; oil and gas components including drill collars and offshore equipment; as well as fasteners, springs, and structural elements exposed to corrosive conditions. The combination of high strength, corrosion resistance, and non-magnetic properties ensures long service life in demanding environments..
Specifications & Standards
- Alloy: Monel 500 / Monel K‑500 (UNS N05500, Werkstoff 2.4375)
- Standards: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, DIN / BS / JIS equivalents
- Forms Available: Sheets, Plates, Coils, Foils, Strips, Billets
- Thickness: 0.5 mm to 150 mm (depending on stock and customer requirements)
- Width: Up to 2000 mm standard, wider on request
- Surface Finish: Hot-rolled, cold-rolled, bright-polished, NO.4, BA, or customized finish
Chemical Composition (Typical / Limits)
| Element | Min % | Max % |
|---|---|---|
| Nickel (Ni) | 63.0 | 70.0 |
| Copper (Cu) | 27.0 | 33.0 |
| Aluminium (Al) | 2.3 | 3.15 |
| Titanium (Ti) | 0.35 | 0.85 |
| Iron (Fe) | - | 2.0 |
| Manganese (Mn) | - | 1.5 |
| Silicon (Si) | - | 0.5 |
| Carbon (C) | - | 0.25 (max) |
| Sulfur (S) | - | 0.01 (max) |
Mechanical & Physical Properties (Typical / Aged Condition)
- Density: ~8.44 g/cm³
- Melting Range: ~1315–1350°C
- Tensile Strength: ~930–1100 MPa
- Yield Strength: ~690 MPa (0.2% offset)
- Elongation: ~15–25%
- Hardness: ~30–40 HRC
- Non-magnetic and corrosion-resistant in seawater and many chemical environments
Equivalent Grades & Designations
- UNS: N05500
- Werkstoff No.: 2.4375
- Standards: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, DIN / BS / JIS equivalents
Dimension Chart (Sheets, Plates & Coils)
| Thickness (mm) | Width (mm) | Length / Coil OD |
|---|---|---|
| 0.5 – 3 mm | 1000 – 2000 mm | Coils / Custom Length |
| 3 – 150 mm | 1000 – 2000 mm | Plates / Cut-to-size |
Applications / Uses
Monel 500 sheets, plates, and coils are ideal for applications requiring high strength, corrosion resistance, and non-magnetic properties. Common industries and uses include:
- Marine equipment: seawater pumps, impellers, propeller shafts
- Chemical processing: tanks, heat exchangers, valves, piping
- Oil & gas: drill collars, valve components, offshore equipment
- Power and industrial plants: condenser tubes, boiler components
- Fasteners, springs, and structural components in corrosive environments
Suppliers like Rose Metal Industries provide Monel 500 sheets, plates, and coils across India — including Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, and the Andaman & Nicobar Islands — as well as for global export. With ready availability in multiple grades, sizes, and finishes, industrial clients can procure Monel 500 to meet both domestic and international project specifications efficiently..
Mechanically, Monel 500 sheets, plates, and coils exhibit a tensile strength ranging from approximately 930–1100 MPa, with a yield strength around 690 MPa in the aged condition. Elongation typically ranges between 15–25%, and hardness in the Rockwell C scale reaches 30–40 HRC. These properties, combined with a density of about 8.44 g/cm³ and non-magnetic behavior, make the material suitable for critical industrial applications..
Frequently Asked Questions (FAQ)
Q1: What is Monel 500 (K‑500) and how does it differ from Monel 400?
A: Monel 500 is an age-hardenable nickel-copper alloy with added aluminium and titanium, providing higher strength and hardness compared to Monel 400 while maintaining excellent corrosion resistance.
Q2: Do you provide mill test certificates (MTC) for sheets, plates, and coils?
A: Yes — Rose Metal Industries issues MTCs for all products and can facilitate third-party inspection and PMI/chemical analysis on request.
Q3: What standards do your Monel 500 sheets, plates, and coils comply with?
A: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, and other customer-specified international standards depending on product form and destination.
Q4: Can you supply custom thickness, width, and finishes?
A: Yes — we offer hot-rolled, cold-rolled, polished, NO.4, BA, and custom tolerances as per customer requirements. Contact sales for lead times and minimum order quantities.
Q5: What industries and applications are suitable?
A: Marine, chemical, oil & gas, industrial power, fasteners, heat exchangers, and other corrosive or high-strength applications.
Q6: Do you supply Monel 500 sheets, plates, and coils to South Indian states and islands?
A: Yes — Rose Metal Industries supplies across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, Andaman & Nicobar Islands, and globally.
