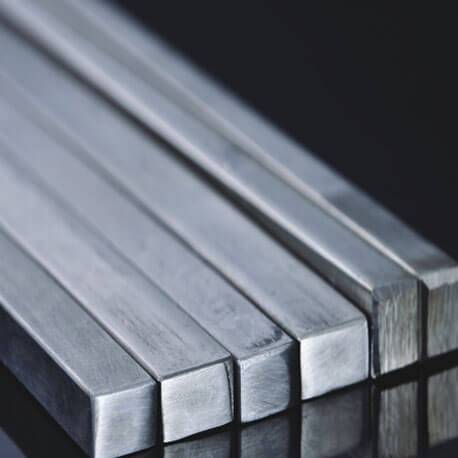

High Nickel Alloy Square Rods
Applications: These high-performance alloy rods are widely used in chemical processing, aerospace, marine engineering, oil & gas, power generation, and other industrial sectors requiring superior corrosion resistance and high-temperature stability. They are also employed in manufacturing pumps, valves, heat exchangers, turbine components, and other critical machinery.
Dimensions and Equivalent Grades: Square rods are supplied in standard sizes and can be customized to meet client requirements. Common dimensions range from 6×6 mm to 200×200 mm, with lengths between 1000 mm and 3000 mm. Equivalent grades include ASTM B160/B161 (Nickel), UNS N02200/N02201, and other international standards for Inconel and Monel alloys. Rose Metal Industries ensures that all products are accompanied by Mill Test Certificates (MTC) and comply with global quality standards.
Mechanical Properties: High Nickel Alloy Square Rods exhibit high tensile strength, yield strength, and elongation. Nickel 200/201 rods typically have tensile strengths ranging from 520–650 MPa and yield strengths from 220–300 MPa. These rods are also ductile and can be machined, welded, or fabricated as per project requirements, providing versatility in manufacturing pipelines, valves, fasteners, and structural components..
Our High Nickel Alloy Square Rods are produced using high-grade materials such as Nickel 200, Nickel 201, Inconel, and Monel alloys. These rods are engineered to provide exceptional resistance against oxidizing and reducing environments, acids, and alkaline solutions. The precision manufacturing processes, including hot-rolled and cold-drawn techniques, ensure dimensional accuracy, uniform surface finish, and excellent mechanical properties..
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grades | Nickel 200, Nickel 201, Inconel 600, Inconel 625, Monel 400, Hastelloy C276 |
| Standards | ASTM B160, ASTM B161, ASTM B162, ASTM B564, ASME/UNS |
| Forms | Hot-rolled square rods, cold-drawn rods, polished rods |
| Surface Finish | Hot-rolled, bright, polished |
| Testing | Dimensional, tensile, hardness, PMI, MTC |
Chemical Composition (typical ranges)
| Element | Nickel 200/201 (wt %) | Inconel 625 (wt %) | Monel 400 (wt %) |
|---|---|---|---|
| Nickel (Ni) | 99.0 min | 58.0 – 63.0 | 63.0 – 70.0 |
| Copper (Cu) | ≤ 0.5 | ≤ 1.0 | 28.0 – 34.0 |
| Iron (Fe) | ≤ 0.5 | 5.0 max | ≤ 2.0 |
| Chromium (Cr) | – | 20.0 – 23.0 | – |
| Molybdenum (Mo) | – | 8.0 – 10.0 | – |
| Carbon (C) | ≤ 0.15 | ≤ 0.10 | ≤ 0.30 |
Mechanical Properties (typical)
| Property | Typical Value | Notes |
|---|---|---|
| Tensile Strength (UTS) | 520 – 650 MPa | Varies by alloy type |
| Yield Strength | 220 – 310 MPa | Cold worked rods higher |
| Elongation | 35 – 50% | High ductility |
| Hardness | HRB 85 – 95 | Depends on condition |
Equivalent Grades & Designations
| Common Name | ASTM / AISI | UNS |
|---|---|---|
| Nickel 200 | ASTM B160 / B161 | N02200 |
| Inconel 625 | ASTM B443 / B446 | N06625 |
| Monel 400 | ASTM B164 / B165 | N04400 |
Dimension Chart — Square Rods (Common sizes)
Standard dimensions supplied in mm & inch.
| Size (mm) | Size (inch) | Lengths (mm) | Tolerance |
|---|---|---|---|
| 6×6 – 20×20 | 1/4"–3/4" | 1000–3000 | ±0.1–0.5 mm |
| 25×25 – 50×50 | 1"–2" | 1000–3000 | ±0.2–0.6 mm |
| 55×55 – 100×100 | 2"+ | 2000–3000 | Custom |
Typical Applications
- Chemical processing equipment & reactors
- Marine engineering components
- Oil & gas pipelines, valves & fittings
- Aerospace & turbine components
- Heat exchangers & high-temperature vessels
- Pumps, fasteners, and structural fabrication
Our High Nickel Alloy Square Rods are produced using high-grade materials such as Nickel 200, Nickel 201, Inconel, and Monel alloys. These rods are engineered to provide exceptional resistance against oxidizing and reducing environments, acids, and alkaline solutions. The precision manufacturing processes, including hot-rolled and cold-drawn techniques, ensure dimensional accuracy, uniform surface finish, and excellent mechanical properties..
High Nickel Alloy Square Rods from Rose Metal Industries are premium-quality rods manufactured, stocked, and exported across India and globally. Our products are widely trusted in Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and Andaman and Nicobar Islands for their superior corrosion resistance, high strength, and performance in extreme industrial environments. Rose Metal Industries ensures that every square rod meets stringent international standards, making it ideal for chemical, marine, oil & gas, and high-temperature industrial applications..
Frequently Asked Questions (FAQ)
Q1: What are High Nickel Alloy Square Rods used for?
A: High Nickel Alloy Square Rods are widely used in chemical processing, marine, oil & gas, aerospace, and high-temperature industrial applications due to their excellent corrosion resistance and mechanical strength.
Q2: Do you provide mill test certificates (MTC) for these rods?
A: Yes — Rose Metal Industries issues MTCs for all High Nickel Alloy Square Rods and can facilitate third-party inspection and PMI/chemical analysis on request.
Q3: What standards do your High Nickel Alloy Square Rods comply with?
A: We supply material according to ASTM B160 / B161 / B162 / B564, ASME/UNS, and other customer-specified standards depending on alloy type and application requirements.
Q4: Can you supply custom sizes, lengths, and finishes?
A: Yes — We offer cut-to-length, cold-drawn, bright finish, polishing, and custom tolerances. Contact our sales team for minimum order quantities and lead times.
Q5: Which alloy should I select for extreme corrosion resistance?
A: Selection depends on the environment. For highly corrosive environments, Hastelloy C276 or Inconel 625 is recommended. Nickel 200/201 and Monel 400 are suitable for less aggressive conditions. Our experts will guide you based on your specific application.
