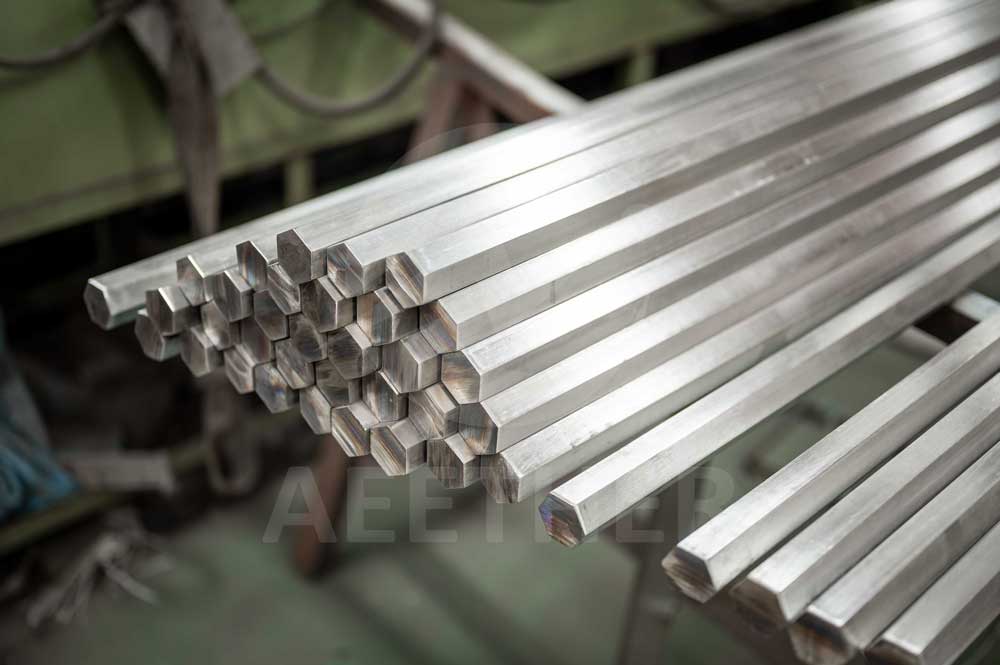

Monel 500 Hexagon Rods
The hexagon shape of these rods is particularly advantageous for manufacturing fasteners, bolts, nuts, shafts, and valve components, as the flats facilitate machining, wrenching, and assembly operations. This shape also allows for easier handling and more efficient utilization of material during production compared to round rods..
Mechanically, Monel 500 hexagon rods exhibit a tensile strength ranging from approximately 930 to 1100 MPa, with a yield strength of around 690 MPa in the aged condition. The elongation typically ranges between 15–25%, and hardness in the Rockwell C scale can reach 30–40 HRC. Its density is about 8.44 g/cm³, and it remains non-magnetic, making it suitable for applications in sensitive environments..
The chemical composition of Monel 500 typically includes 63–70% nickel, 27–33% copper, 2.3–3.15% aluminum, and 0.35–0.85% titanium, with trace amounts of iron, manganese, silicon, carbon, and sulfur. This precise composition allows the alloy to achieve superior strength and toughness compared to standard Monel 400, while retaining excellent resistance to seawater, acids, and alkaline solutions.
Monel 500 (K‑500 / UNS N05500) hexagon rods are high-performance nickel-copper alloys designed for applications requiring both exceptional corrosion resistance and high mechanical strength. The alloy is age-hardenable due to the addition of aluminum and titanium, which enhances its hardness and tensile strength while maintaining excellent ductility, non-magnetic properties, and resistance to a wide range of corrosive environments.
Specifications & Standards
- Alloy: Monel 500 / Monel K‑500 (UNS N05500, Werkstoff 2.4375)
- Standards: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, DIN / BS / JIS equivalents
- Forms Available: Hexagon rods, square rods, round bars, flat bars, rectangular bars, billets, ingots
- Size Range: Hexagon rods typically from 5 mm to 500 mm across flats, lengths as long bars or cut-to-size
- Surface Finish: Hot-rolled, cold-drawn, bright-polished, matt, rough-turned, BA, NO.4 finish
Chemical Composition (Typical / Limits)
| Element | Min % | Max % |
|---|---|---|
| Nickel (Ni) | 63.0 | 70.0 |
| Copper (Cu) | 27.0 | 33.0 |
| Aluminium (Al) | 2.3 | 3.15 |
| Titanium (Ti) | 0.35 | 0.85 |
| Iron (Fe) | - | 2.0 |
| Manganese (Mn) | - | 1.5 |
| Silicon (Si) | - | 0.5 |
| Carbon (C) | - | 0.25 (max) |
| Sulfur (S) | - | 0.01 (max) |
Mechanical & Physical Properties (Typical / Aged Condition)
- Density: ~8.44 g/cm³
- Melting Range: ~1315–1350°C
- Tensile Strength: ~930–1100 MPa
- Yield Strength: ~690 MPa (0.2% offset)
- Elongation: ~15–25%
- Hardness: ~30–40 HRC
- Non-magnetic
Equivalent Grades & Designations
- UNS: N05500
- Werkstoff No.: 2.4375
- Standards: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, DIN / BS / JIS equivalents
Dimension Chart (Hexagon Rods)
| Across Flats (mm) | Remarks |
|---|---|
| 5 mm to 500 mm | Standard stock range; custom cutting available |
| Custom lengths | Cut-to-size available on request with various finishes |
Applications / Uses
Monel 500 hexagon rods are widely used in industries requiring high strength, corrosion resistance, and durability. Typical applications include:
- Pump shafts and impellers for marine service
- Valves, fasteners, bolts, and screws for chemical and petrochemical industries
- Oil & gas equipment including drill collars and safety valves
- Heat exchangers, condensers, and chemical processing equipment
- Springs, cables, chains in high-stress corrosive environments
Monel 500 hexagon rods are widely used across marine, chemical, oil and gas, and industrial sectors. They are ideal for pump shafts, impellers, propeller shafts, drill collars, valve stems, and other components exposed to seawater, corrosive chemicals, and sour-gas environments. Their combination of strength, corrosion resistance, and non-magnetic properties makes them a preferred choice for demanding applications.
Manufacturers and stockists like Rose Metal Industries supply Monel 500 hexagon rods across India, including Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, and the Andaman & Nicobar Islands, as well as for global export. Their availability in various sizes, finishes, and custom lengths ensures that industrial clients can procure high-quality material tailored to specific application requirements..
Frequently Asked Questions (FAQ)
Q1: What is Monel 500 (K‑500) and how does it differ from Monel 400?
A: Monel 500 is an age-hardenable nickel-copper alloy with added aluminium and titanium, providing higher strength and hardness compared to Monel 400.
Q2: Do you provide mill test certificates (MTC) for Monel 500 hexagon rods?
A: Yes — Rose Metal Industries issues MTCs and can facilitate third-party inspection and PMI/chemical analysis upon request.
Q3: What standards do your Monel 500 hexagon rods comply with?
A: ASTM B865 / ASME SB865, AMS 4676, QQ‑N‑286, and other customer-specified international standards depending on form and destination.
Q4: Can you supply custom dimensions and surface finishes?
A: Yes — we offer cut-to-length, turned/bright, polished, and custom tolerances. Contact sales for lead times and minimum order quantities.
Q5: What applications are suitable for Monel 500 hexagon rods?
A: Pump shafts, impellers, valves, fasteners, marine equipment, oil & gas components, chemical processing equipment, heat exchangers, and high-stress environments.
Q6: Do you supply Monel 500 rods to South Indian states and islands?
A: Yes — we supply across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, Andaman & Nicobar Islands, and globally.
