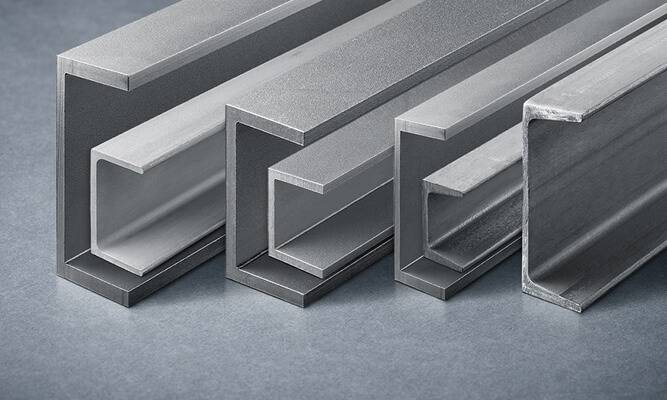

Monel 500 Angles and Channels
Monel 500 Angles and Channels are high-strength, corrosion-resistant nickel-copper alloys designed for critical structural and industrial applications. Manufactured using advanced metallurgical processes, these products provide superior mechanical properties, excellent resistance to seawater, acids, alkalis, and sour gases, and non-magnetic behavior. Rose Metal Industries supplies these products across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), Andaman & Nicobar Islands, and to global markets..
The chemical composition of Monel 500 Angles and Channels typically includes 63–70% nickel, 27–33% copper, 2.3–3.15% aluminum, and 0.35–0.85% titanium, with minor traces of iron, manganese, silicon, carbon, and sulfur. This age-hardenable alloy offers higher strength and hardness compared to Monel 400, while maintaining exceptional corrosion resistance in marine, chemical, and industrial environments..
Mechanically, Monel 500 Angles and Channels demonstrate a tensile strength of approximately 930–1100 MPa and yield strength of around 690 MPa in the aged condition. Elongation ranges from 15–25%, and hardness in Rockwell C scale reaches 30–40 HRC. These properties ensure excellent fatigue resistance, dimensional stability, and durability under high stress and corrosive conditions..
Rose Metal Industries offers Monel 500 Angles and Channels in various sizes, thicknesses, and lengths. Hot-rolled, cold-rolled, and polished finishes are available to suit custom fabrication requirements. Standard and custom dimensions are provided for structural and mechanical applications, ensuring precise fit and long-term performance in demanding environments..
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Alloy | Monel 500 (Monel K-500) — UNS N05500, Werkstoff 2.4375 |
| Standards | ASTM B865 / ASME SB865 (bars/rods/profiles), AMS 4676, QQ-N-286 — supply per customer standard |
| Forms | Equal/unequal angles, channels (C-sections), cut-to-length, mill-finish / pickled / polished |
| Finishes | Hot-rolled, cold-worked, bright polished, NO.4 / mill finish |
| Testing & Docs | Dimensional, tensile, hardness, PMI, MTC (EN 10204 3.1) — available on request |
Chemical Composition (Typical Limits)
| Element | Typical / Range (wt %) |
|---|---|
| Nickel (Ni) | 63.0 – 70.0 |
| Copper (Cu) | 27.0 – 33.0 |
| Aluminium (Al) | 2.30 – 3.15 |
| Titanium (Ti) | 0.35 – 0.85 |
| Iron (Fe) | ≤ 2.0 |
| Manganese (Mn) | ≤ 1.5 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.25 |
| Sulfur (S) | ≤ 0.01 |
Mechanical Properties (Typical / Aged Condition)
| Property | Typical Value |
|---|---|
| Tensile Strength (UTS) | ~930 – 1100 MPa |
| Yield Strength (0.2% offset) | ~690 MPa |
| Elongation (A%) | ~15 – 25% |
| Hardness (HRC) | ~30 – 40 (varies by ageing) |
| Density | ~8.44 g/cm³ |
| Melting Range | ~1315 – 1350 °C |
Dimension Chart — Typical Angles & Channels (stock examples)
| Section | Common Sizes (mm) | Thickness (mm) | Standard Lengths |
|---|---|---|---|
| Equal Angle | 25×25, 40×40, 50×50, 75×75, 100×100, 150×150 | 3, 5, 6, 8, 10 | 3000 / 6000 mm or cut-to-length |
| Unequal Angle | 50×30, 75×50, 100×60, 150×90 | 4, 6, 8, 10 | 3000 / 6000 mm or cut-to-length |
| Channel (C-section) | 50×25, 75×38, 100×50, 150×75, 200×75 | 4, 6, 8, 10, 12 | 3000 / 6000 mm or cut-to-length |
Applications
- Marine & offshore structural brackets, frames, and supports (seawater resistant)
- Chemical & petrochemical plant supports, pipe racks and equipment foundations
- Pump skids, motor mounts, and heat exchanger frameworks
- Desalination plant structures and seawater handling frameworks
- Oil & gas topside structures, platforms and corrosive environment supports
Applications of Monel 500 Angles and Channels are extensive. They are used in marine structures such as platforms and shipbuilding, chemical processing equipment, offshore oil and gas structures, high-strength fasteners, and structural frameworks exposed to corrosive atmospheres. Industrial locations across Chennai, Bengaluru, Hyderabad, Coimbatore, Visakhapatnam, Mysuru, Puducherry, and Port Blair benefit from these products due to their superior corrosion and mechanical performance..
Rose Metal Industries is a reliable manufacturer, stockist, and global exporter of Monel 500 Angles and Channels, offering high-quality products that comply with international standards such as ASTM B164, ASTM B366, and AMS 4676. With ready availability and customized solutions, Rose Metal Industries ensures timely delivery and technical support for both domestic and international industrial projects.
Frequently Asked Questions (FAQ)
Q1: What makes Monel 500 better than Monel 400?
A: Monel 500 offers significantly higher strength and hardness due to its age-hardening characteristics. It also provides superior corrosion resistance in seawater, alkalis, and sour-gas environments compared to Monel 400.
Q2: Do you provide mill test certificates (MTC) for Monel 500 Angles & Channels?
A: Yes — Rose Metal Industries provides MTCs as per EN 10204 3.1. We also arrange third-party inspections like BV, TUV, LR, SGS, and provide PMI & chemical testing on request.
Q3: What standards do your Monel 500 Angles & Channels comply with?
A: Our products meet international standards including ASTM B865, ASME SB865, AMS 4676, and customer-specific requirements for global markets.
Q4: Can you supply custom sizes and shapes in Monel 500 profiles?
A: Yes — we supply custom sizes, thicknesses, special edge preparation, and machining options. Cut-to-length and fabricated angle/channel profiles are also available.
Q5: Where do you supply Monel 500 Angles & Channels in India?
A: We supply regularly to Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and Andaman & Nicobar Islands, along with exports to global markets across UAE, Europe, USA, and Southeast Asia.
