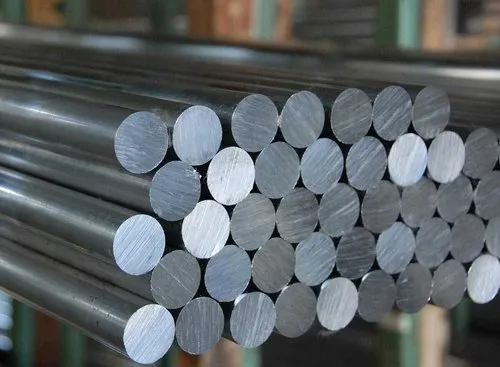

Monel 400 Round Rods
Monel 400 Round Rods are high-performance nickel-copper alloy products known for their exceptional resistance to corrosion, high strength, and reliability in demanding industrial applications. Composed of approximately 67% nickel and 23% copper, Monel 400 offers superior resistance to seawater, acids, alkaline environments, and stress-corrosion cracking. These properties make Monel 400 Round Rods a preferred choice for marine, oil & gas, chemical processing, and power generation industries where extreme durability is essential..
The excellent mechanical properties of Monel 400, even at sub-zero and elevated temperatures, allow these rods to perform effectively under high pressure and high corrosive conditions. Their toughness and hardness allow them to be machined, welded, and fabricated into various industrial components. Monel 400 Round Rods also retain their strength across a wide temperature range, making them ideal for heat exchangers, pump shafts, seawater valves, distillation towers, and high-temperature chemical equipment..
Due to their outstanding resistance to saltwater corrosion, Monel 400 Round Rods are widely used in marine engineering—including shipbuilding, offshore platforms, seawater intakes, and piping systems. They are especially suitable for regions with coastal and humid climates where materials need protection from pitting and corrosion. The alloy’s ability to withstand hydrofluoric acid in all concentrations further expands its application scope in chemical and petrochemical industries..
Monel 400 Round Rods are available in a wide range of diameters, lengths, and custom sizes to meet global industrial standards. They comply with ASTM B164 and other international norms, ensuring consistent quality and performance. Manufacturers and suppliers offer both hot-worked and cold-worked conditions depending on the mechanical requirements of the application. Their uniform composition and structural integrity make them reliable for machining precision components..
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grade | Monel 400 (UNS N04400 / Alloy 400) |
| Common Standards | UNS N04400; supplied to ASTM/ASME/EN customer specifications (bar/rod specifications commonly referenced in industry) |
| Forms | Round rods / bars — hot-rolled, cold-finished, turned & polished |
| Surface Finish | Hot-rolled, annealed & pickled, turned & polished |
| Testing & Documentation | MTC (EN 10204 3.1/3.2 on request), PMI, mechanical tests, NDT/third-party inspection |
Chemical Composition (typical ranges, wt %)
| Element | Monel 400 (typical) |
|---|---|
| Nickel (Ni) | Balance — typically ~63% (remainder) |
| Copper (Cu) | ~28 – 34 |
| Iron (Fe) | ≤ 2.5 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.30 |
| Sulfur (S) | ≤ 0.024 |
Mechanical Properties (typical / annealed)
| Property | Typical Value | Notes |
|---|---|---|
| Tensile Strength (UTS) | ~ 517 – 620 MPa (75 – 90 ksi) | Annealed condition (typical published ranges) |
| Yield Strength (0.2% offset) | ~ 172 – 345 MPa (25 – 50 ksi) | Varies with temper and product form |
| Elongation | ~ 40 – 50% (or higher depending on form) | Good ductility |
| Hardness | Typical HRB/Brinell values depending on condition | Cold work increases hardness/strength |
Dimension Chart — Round Rod (common sizes)
Standard diameters and lengths — custom sizes available on request.
| Diameter (mm) | Diameter (inch) | Lengths (mm) | Tolerance |
|---|---|---|---|
| 6 – 16 | 1/4" – 5/8" | 1000 – 3000 | ±0.1 – 0.5 mm |
| 18 – 32 | 3/4" – 1 1/4" | 1000 – 3000 | ±0.1 – 0.6 mm |
| 35 – 100 | 1 3/8" – 4" | 2000 – 6000 | Custom |
Typical Applications
- Marine and offshore components: shafts, propeller parts, seawater valves and fasteners
- Chemical processing equipment: heat exchangers, reactors, pumps, piping components
- Desalination plants and seawater service systems — brine handling and intake components
- Oil & gas components: downhole tools, compressor parts and sour service components where compatible
- Power generation: turbine and condenser components, steam systems where appropriate
- Specialized engineering: aerospace, defense, and cryogenic applications requiring corrosion resistance and toughness
Industries across India, especially in coastal and industrial hubs like Tamil Nadu, Karnataka, Andhra Pradesh, Telangana, Puducherry, and Andaman & Nicobar Islands, trust Monel 400 Round Rods due to their ability to withstand harsh environmental conditions. Global industries similarly rely on these rods for applications involving chemical exposure, extreme temperatures, and corrosive environments. Their unmatched durability, long service life, and low maintenance requirements make Monel 400 Round Rods a valuable material choice worldwide..
Monel 400 Round Rods are widely appreciated for their exceptional resistance to rapidly flowing seawater, an attribute that sets them apart from many stainless steel and copper-based alloys. This unique resistance comes from the high nickel content, which stabilizes the structure of the alloy and protects it against chloride-induced corrosion and pitting, even in aggressive marine environments. This makes the alloy particularly valuable for desalination plants, offshore drilling rigs, and coastal industrial facilities where conventional materials often fail due to corrosion fatigue.
Frequently Asked Questions (FAQ)
Q1: What is Monel 400 and where is it used?
A: Monel 400 is a nickel-copper alloy (UNS N04400) noted for excellent resistance to seawater, many acids and alkalis, and good mechanical properties across a wide temperature range. It’s commonly used for marine, chemical processing, desalination and specialized engineering components.
Q2: Do you provide Mill Test Certificates (MTC) and inspection reports?
A: Yes — Rose Metal Industries supplies full MTCs (EN 10204 3.1/3.2 on request), PMI/chemical analysis and can arrange third-party inspection and NDT as required for export or critical projects.
Q3: Can Monel 400 rods be welded and machined?
A: Yes — Monel 400 is readily machinable and weldable using recommended filler metals and procedures. Cold working increases strength but reduces ductility; specifications should be followed for forming and welding.
Q4: What sizes can you supply and do you export?
A: We stock and supply a wide range of diameters and lengths and offer custom cut-to-length, machining and packaging. We serve customers across Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry and Andaman & Nicobar Islands and export globally.
Q5: What documentation do you provide for project procurement?
A: Standard documentation includes MTC, chemical and mechanical test reports, PMI, and optional NDT/third-party inspection certificates and export documentation to meet project QA/QC requirements.
