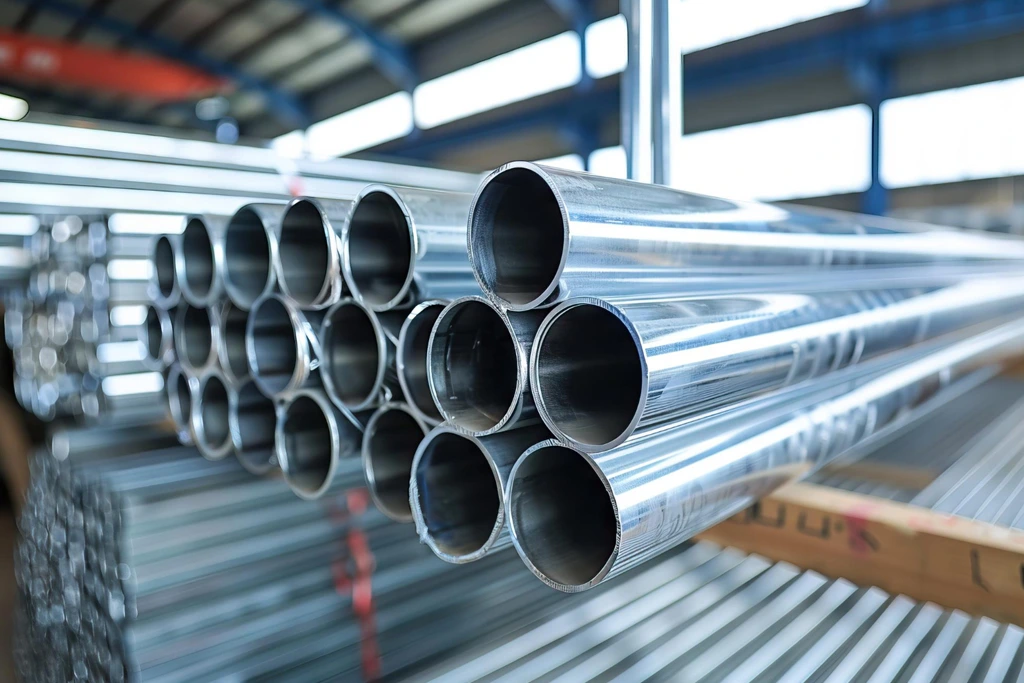

Monel 400 Pipe
Rose Metal Industries is a leading Manufacturer, Stockist and Exporter of Monel 400 Pipe, supplying premium-quality stainless steel products across India and worldwide. With a strong distribution network in Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands, we ensure timely delivery of high-performance round bars for diverse industrial applications. Our 304/304L Round Bars are manufactured using advanced technology and strict quality control, making them suitable for corrosive environments, structural applications, and precision machining.
Monel 400 Pipes, manufactured and supplied by Rose Metal Industries, are high-performance nickel-copper alloy pipes widely used in industries requiring exceptional corrosion resistance. With a nominal nickel content of approximately 63% and copper around 28–34%, Monel 400 offers excellent strength and durability in aggressive environments such as seawater, acidic conditions, and chemical processing plants. Rose Metal Industries is a leading manufacturer, stockist, and exporter of Monel 400 Pipes across Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands..
Monel 400 Pipes are composed primarily of nickel (63%) and copper (28–34%), with small amounts of iron, manganese, and carbon. This balanced composition provides outstanding corrosion resistance in seawater and industrial chemicals while maintaining high tensile strength and toughness. Typical mechanical properties include a tensile strength of 550–690 MPa, yield strength of 240–380 MPa, and elongation above 30%, making them suitable for demanding engineering applications.
Monel 400 Pipes are internationally recognized under ASTM B165, ASME SB165, and UNS N04400. These equivalent standards ensure that the pipes meet global quality requirements and can be used interchangeably with other certified materials in chemical, petrochemical, marine, and offshore industries.
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grades | Monel 400 (UNS N04400) |
| Standards | ASTM B165, ASME SB165, DIN 2.4360, ISO 15156 |
| Forms | Seamless pipes, welded pipes, ERW pipes |
| Surface Finish | Mill finish, polished, pickled |
| Testing | Dimensional, tensile, hardness, PMI, MTC |
Chemical Composition (typical ranges)
| Element | Monel 400 (wt %) |
|---|---|
| Nickel (Ni) | 63.0 – 70.0 |
| Copper (Cu) | 28.0 – 34.0 |
| Iron (Fe) | ≤ 2.0 |
| Manganese (Mn) | ≤ 2.0 |
| Carbon (C) | ≤ 0.3 |
| Silicon (Si) | ≤ 0.5 |
| Sulfur (S) | ≤ 0.024 |
Mechanical Properties (typical)
| Property | Typical Value | Notes |
|---|---|---|
| Tensile Strength (UTS) | 550 – 690 MPa | Depends on pipe schedule |
| Yield Strength | 220 MPa min | Varies with condition |
| Elongation | 30 – 45% | High ductility |
| Hardness | HRB 70 – 95 | Typical annealed condition |
Equivalent Grades & Designations
| Common Name | ASTM / AISI | DIN / EN | UNS |
|---|---|---|---|
| Monel 400 | ASTM B165 / SB165 | DIN 2.4360 | N04400 |
Dimension Chart — Pipes (Common sizes)
Standard diameters supplied in mm & inch, schedule as per ASTM/ASME.
| Outer Diameter (mm) | Outer Diameter (inch) | Wall Thickness (mm) | Schedule |
|---|---|---|---|
| 15 – 50 | 1/2" – 2" | 1.65 – 4.55 | 10, 40, 80 |
| 60 – 200 | 2.5" – 8" | 3.0 – 12.7 | 40, 80, 160 |
| 220 – 400 | 8.5" – 16" | 6.0 – 19.1 | 40, 80, 160 |
Typical Applications
- Marine & seawater piping
- Desalination plants
- Chemical processing equipment
- Offshore oil & gas installations
- Heat exchangers & condensers
- Power plants and nuclear components
Monel 400 Pipes are supplied in a wide range of diameters and wall thicknesses, from small bore to large-diameter pipes, and in cut-to-length or mill lengths as per project specifications. Rose Metal Industries maintains ready stock for immediate dispatch while also offering custom fabrication services for specialized industrial projects..
Rose Metal Industries exports Monel 400 Pipes globally while serving industrial hubs in Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands. Their products meet international standards, making them suitable for chemical, marine, and power industries worldwide. With a focus on quality, prompt delivery, and technical support, Monel 400 Pipes from Rose Metal Industries are a trusted solution for critical applications requiring corrosion-resistant, high-strength piping systems..
Frequently Asked Questions (FAQ)
Q1: What makes Monel 400 Pipes suitable for seawater applications?
A: Monel 400 Pipes have high nickel content and balanced copper composition, providing exceptional resistance to seawater corrosion, pitting, and chloride stress cracking, making them ideal for marine and offshore environments.
Q2: Do you provide mill test certificates (MTC) for Monel 400 Pipes?
A: Yes — Rose Metal Industries issues MTCs and can facilitate third-party inspection and chemical analysis on request.
Q3: What standards do your Monel 400 Pipes comply with?
A: Our pipes comply with ASTM B165, ASME SB165, and UNS N04400 standards, ensuring high-quality international-grade material suitable for chemical, marine, and offshore applications.
Q4: Can you supply custom diameters, lengths, and schedules?
A: Yes — we offer custom dimensions, wall thicknesses, and schedules to meet project-specific requirements. Contact sales for lead times and minimum order quantities.
Q5: Which industries commonly use Monel 400 Pipes?
A: Monel 400 Pipes are widely used in chemical processing, desalination plants, marine engineering, offshore oil & gas installations, heat exchangers, and power plants.
