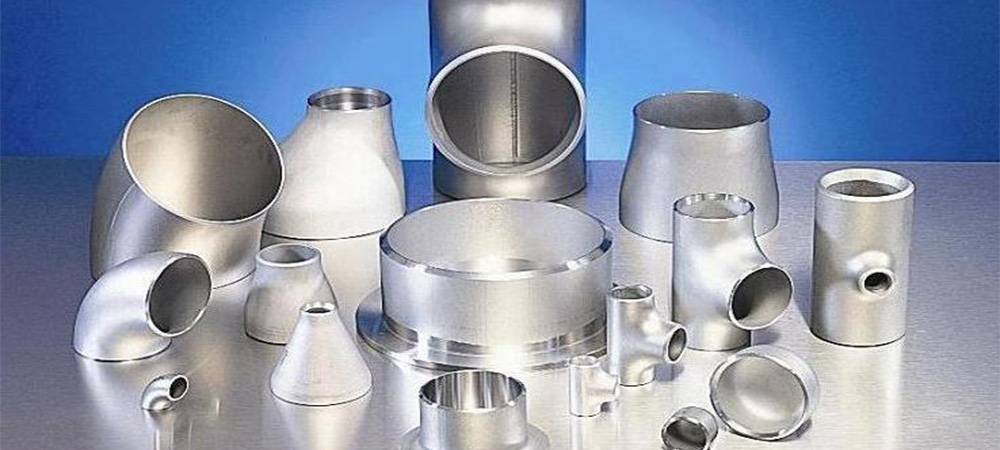

Monel 400 Pipe Fittings
Monel 400 Pipe Fittings are high-performance nickel-copper alloy components widely used in demanding industrial applications. Manufactured by Rose Metal Industries, these fittings are stocked and exported to various regions including Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and Andaman & Nicobar Islands. Known for their outstanding corrosion resistance and mechanical strength, Monel 400 fittings are ideal for marine, chemical, and offshore environments where exposure to seawater and aggressive chemicals is common...
The chemical composition of Monel 400 Pipe Fittings typically consists of 63–70% nickel, 28–34% copper, with small amounts of iron, manganese, carbon, and silicon. This unique alloy combination provides exceptional resistance to chloride-induced stress corrosion cracking and excellent performance in acidic or alkaline environments. This makes Monel 400 fittings highly suitable for piping systems in desalination plants, chemical processing units, offshore platforms, and marine vessels.
From a mechanical standpoint, Monel 400 Pipe Fittings exhibit tensile strength ranging from 550 to 690 MPa, a yield strength above 220 MPa, and elongation between 30–45%. These properties ensure that the fittings maintain structural integrity under high pressure and temperature conditions. Hardness values typically range between HRB 70–95, depending on the heat treatment and product form. This combination of strength and ductility allows the fittings to withstand mechanical stresses while retaining corrosion resistance..
Rose Metal Industries manufactures Monel 400 Pipe Fittings in a wide range of sizes and dimensions, including elbows, tees, reducers, couplings, and flanges. Standard nominal sizes range from 15 mm (1/2") to 200 mm (8") with wall thicknesses from 1.65 mm to 12.7 mm and various schedules including 10, 40, 80, and 160. Custom sizes and dimensions are also available to meet specific project or engineering requirements, ensuring seamless integration into existing piping systems.
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grades | Monel 400 (UNS N04400) |
| Standards | ASTM B165, ASME SB165, UNS N04400 |
| Forms | Elbows, Tees, Reducers, Couplings, Flanges |
| Surface Finish | Polished, Pickled, Annealed |
| Testing | Dimensional, Tensile, Hardness, PMI, MTC |
Chemical Composition (typical ranges)
| Element | Monel 400 (wt %) |
|---|---|
| Nickel (Ni) | 63–70 |
| Copper (Cu) | 28–34 |
| Iron (Fe) | ≤ 2.0 |
| Manganese (Mn) | ≤ 2.0 |
| Carbon (C) | ≤ 0.30 |
| Silicon (Si) | ≤ 0.50 |
Mechanical Properties (typical)
| Property | Typical Value | Notes |
|---|---|---|
| Tensile Strength | 550–690 MPa | Depends on product form |
| Yield Strength | 220–380 MPa | Cold-worked higher |
| Elongation | 30–45% | Good ductility |
| Hardness | HRB 70–95 | Varies with heat treatment |
Dimension Chart — Monel 400 Pipe Fittings
Standard nominal sizes supplied in mm & inch.
| Nominal Size (mm) | Nominal Size (inch) | Wall Thickness (mm) | Schedule |
|---|---|---|---|
| 15–50 | 1/2"–2" | 1.65–6.55 | 10, 40, 80 |
| 65–200 | 2.5"–8" | 2.77–12.7 | 40, 80, 160 |
Typical Applications
- Marine and offshore piping systems
- Chemical processing plants
- Desalination units
- Oil & Gas pipelines
- Heat exchangers and pressure vessels
- Nuclear and power generation applications
These fittings are engineered to comply with international standards such as ASTM B165, ASME SB165, and UNS N04400, ensuring global-grade quality. Each fitting undergoes thorough testing including dimensional inspection, tensile testing, hardness evaluation, PMI, and mill test certification (MTC). This guarantees reliability and traceability for critical applications across industrial sectors..
Applications of Monel 400 Pipe Fittings are extensive and include marine and offshore piping systems, chemical processing, desalination plants, oil & gas pipelines, heat exchangers, and power generation units. With high corrosion resistance and mechanical reliability, these fittings are a preferred choice for industries in Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, and Andaman & Nicobar Islands, as well as international markets. Rose Metal Industries ensures prompt delivery, technical support, and high-quality products, making them a trusted manufacturer, stockist, and exporter of Monel 400 Pipe Fittings globally...
Frequently Asked Questions (FAQ)
Q1: What makes Monel 400 Pipe Fittings suitable for seawater applications?
A: Monel 400 Pipe Fittings have high nickel and balanced copper composition, providing excellent resistance to seawater corrosion and chloride stress cracking.
Q2: Do you provide mill test certificates (MTC)?
A: Yes, Rose Metal Industries provides MTCs and can facilitate third-party inspection and chemical analysis on request.
Q3: What standards do your Monel 400 Pipe Fittings comply with?
A: Our fittings comply with ASTM B165, ASME SB165, and UNS N04400 standards, ensuring global-grade quality.
Q4: Can I order custom diameters and schedules?
A: Yes, we provide custom dimensions, wall thicknesses, and schedules to meet specific project requirements.
Q5: Which industries use Monel 400 Pipe Fittings?
A: Industries include marine engineering, offshore platforms, desalination plants, chemical processing, oil & gas, and power generation units.
