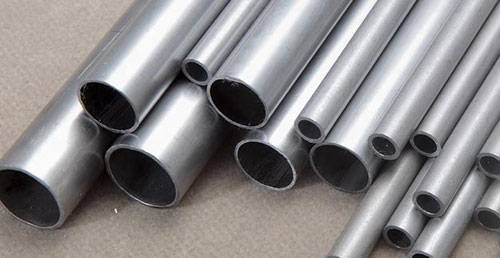

Inconel 718 Pipe
Typical applications of Inconel 718 Pipes include heat exchangers, turbine engine piping, chemical reactors, offshore and marine piping, power generation systems, and high-temperature process lines. Our extensive stock ensures prompt delivery to industries across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, Andaman & Nicobar Islands, while export services provide the same high-quality Inconel 718 Pipes to international clients, meeting critical performance and safety requirements..
Rose Metal Industries provides Inconel 718 Pipes with a range of dimensions, wall thicknesses, and lengths, available according to customer requirements. All products undergo rigorous inspection including positive material identification (PMI), hardness, tensile tests, and mill test certification (MTC) to guarantee quality compliance. Equivalent grades conform to ASTM, ASME, and UNS N07718 standards, ensuring global acceptance and compatibility..
In terms of mechanical properties, Inconel 718 Pipes exhibit tensile strength of 1240–1400 MPa, yield strength of 1030–1200 MPa, elongation of 15–20%, and hardness between 250–310 HB, depending on the heat treatment condition. These characteristics allow the pipes to withstand high-pressure applications in aerospace engine components, nuclear reactors, and chemical plants, ensuring long-term reliability and safety..
The chemical composition of Inconel 718 Pipes typically includes Nickel (50–55%), Chromium (17–21%), Molybdenum (2.8–3.3%), Niobium (4.75–5.5%), and minor elements like Cobalt, Iron, Carbon, Manganese, and Silicon. This unique combination provides superior resistance to oxidation, corrosion, and pitting, even in chloride-rich or high-temperature environments, making these pipes highly suitable for offshore, marine, and chemical processing industries..
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grades | Inconel 718 (UNS N07718) |
| Standards | ASTM B423, ASME SB423, EN 10204 |
| Forms | Seamless, Welded Pipes |
| Surface Finish | Hot-Finished, Pickled & Passivated |
| Testing | Dimensional, PMI, Hardness, Tensile, MTC |
Chemical Composition (wt%)
| Element | Range (%) |
|---|---|
| Nickel (Ni) | 50–55 |
| Chromium (Cr) | 17–21 |
| Cobalt (Co) | ≤1 |
| Molybdenum (Mo) | 2.8–3.3 |
| Niobium (Nb) | 4.75–5.5 |
| Iron (Fe) | Balance |
| Carbon (C) | ≤0.08 |
| Manganese (Mn) | ≤0.35 |
| Silicon (Si) | ≤0.35 |
| Sulfur (S) | ≤0.015 |
| Phosphorus (P) | ≤0.015 |
Mechanical Properties
| Property | Typical Value |
|---|---|
| Tensile Strength (UTS) | 1240–1400 MPa |
| Yield Strength | 1030–1200 MPa |
| Elongation | 15–20% |
| Hardness | 250–310 HB |
Dimension Chart – Inconel 718 Pipes
| Outer Diameter (mm) | Wall Thickness (mm) | Length (mm) | Tolerance |
|---|---|---|---|
| 6–200 | 1–25 | 1000–6000 | ASTM/EN |
Typical Applications
- Aerospace & turbine engine piping
- Oil & gas pipelines
- Chemical process plants
- Marine & offshore piping
- Heat exchangers & power plants
- Nuclear reactors & critical high-temperature systems
Our Inconel 718 Pipes are produced to meet stringent international standards such as ASTM B423, ASME SB423, and EN specifications. Available in both seamless and welded forms, these pipes maintain their mechanical integrity even at extreme temperatures. Rose Metal Industries ensures high-quality production, strict testing, and precise dimensional control for every pipe, ensuring reliable performance in critical applications..
Inconel 718 Pipes are high-performance nickel-chromium alloys widely used in industries requiring excellent corrosion resistance and high-temperature strength. Manufactured, stocked, and exported by Rose Metal Industries, these pipes are supplied across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and Andaman & Nicobar Islands, as well as global markets. Inconel 718 offers exceptional durability in harsh environments, making it ideal for aerospace, power generation, marine, and chemical processing applications..
Frequently Asked Questions (FAQ)
Q1: What is the difference between Inconel 718 and Inconel 625?
A: Inconel 718 offers higher tensile and yield strength with excellent corrosion and oxidation resistance at elevated temperatures, while Inconel 625 has higher corrosion resistance and is more ductile at lower temperatures.
Q2: Do you provide mill test certificates (MTC)?
A: Yes, Rose Metal Industries provides MTC and third-party inspection reports on request for Inconel 718 Pipes.
Q3: Can you supply custom diameters and wall thicknesses?
A: Yes, we offer cut-to-length, custom diameters, wall thicknesses, and polished or pickled finishes as per customer requirements.
Q4: What standards do your Inconel 718 Pipes comply with?
A: Pipes comply with ASTM B423/B423M, ASME SB423, EN 10204, and UNS N07718 specifications.
Q5: Where are your pipes supplied?
A: We supply Inconel 718 Pipes across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, Andaman & Nicobar Islands and export to global markets.
