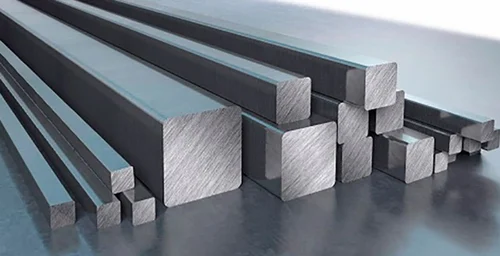

Inconel 625 Square Rods
Inconel 625 square rods are premium nickel‑chromium‑molybdenum superalloy products manufactured, stocked, and exported by Rose Metal Industries, offering exceptional strength, corrosion resistance, and thermal stability for demanding industrial applications. Designed for environments where high stress, elevated temperatures, or aggressive chemical exposure is common, these square rods provide consistent dimensional accuracy and ease of machining for components such as fasteners, shafts, structural parts, and precision-engineered equipment..
The chemical composition of Inconel 625 includes a minimum of 58% nickel, 20–23% chromium, 8–10% molybdenum, and 3.15–4.15% niobium plus tantalum, with controlled amounts of iron, carbon, silicon, and manganese. This alloying ensures outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, making the rods suitable for use in marine, chemical, and petrochemical industries as well as for high-temperature applications.
Mechanically, Inconel 625 square rods exhibit high tensile strength (typically around 827 MPa), yield strength (~414 MPa), and elongation of 30–40%, which together provide excellent ductility, toughness, and structural integrity. The rods maintain these properties even at elevated temperatures up to approximately 980 °C, allowing them to perform reliably in turbine parts, heat exchangers, reactor components, and other critical industrial equipment.
These square rods are produced according to global standards such as ASTM B446 / ASME SB446, ensuring high quality and conformity to international specifications. They are available in various cross-sectional sizes and lengths, supplied in annealed or forged conditions, and accompanied by mill test certificates (MTC), chemical analysis, and mechanical property reports for quality assurance.
✔ Inconel 625 Square Rods – Specifications
- Standard: ASTM B446 / ASME SB446
- Grade: Inconel 625 / UNS N06625
- Diameter: 6mm to 200mm
- Form: Square Rods / Square Bars
- Finish: Bright, Black, Polished
- Length: 1m – 6m (Custom available)
✔ Chemical Composition of Inconel 625
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 58 min |
| Chromium (Cr) | 20 – 23 |
| Molybdenum (Mo) | 8 – 10 |
| Niobium + Tantalum | 3.15 – 4.15 |
| Iron (Fe) | 5 max |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 0.50 max |
| Silicon (Si) | 0.50 max |
✔ Mechanical Properties of Inconel 625 Square Rods
| Property | Value |
|---|---|
| Tensile Strength | 830 MPa min |
| Yield Strength | 414 MPa min |
| Elongation | 30% min |
| Hardness | ≤ 95 HRB |
✔ Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| UNS | N06625 |
| Werkstoff Nr. | 2.4856 |
| EN | Alloy 625 |
| BS | NA21 |
✔ Dimension Chart (Standard)
| Size (mm) | Weight (kg/m) |
|---|---|
| 10 x 10 | 0.79 |
| 12 x 12 | 1.15 |
| 16 x 16 | 2.03 |
| 20 x 20 | 3.20 |
| 25 x 25 | 5.00 |
| 30 x 30 | 7.20 |
| 40 x 40 | 12.80 |
| 50 x 50 | 20.00 |
✔ Applications of Inconel 625 Square Rods
- Aerospace components & turbine parts
- Chemical processing & pollution control systems
- Marine & offshore engineering (ideal for Tamil Nadu, Andhra Pradesh & Andaman coastal zones)
- Heat exchangers, condensers & reactor vessels
- Oil & gas equipment
- Desalination plant components
- High-temperature furnace parts
Applications of Inconel 625 square rods include chemical and petrochemical processing equipment, marine and offshore structures, oil and gas components, aerospace parts, and power generation machinery. Their combination of high corrosion resistance, mechanical strength, and weldability makes them an ideal choice for critical applications requiring longevity and reliability..
Rose Metal Industries caters to industrial clients across India, including Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands, while also supplying global customers. Their focus on quality, compliance with international standards, and ability to provide customized solutions makes them a trusted partner for sourcing Inconel 625 square rods for demanding industrial applications..
Frequently Asked Questions (FAQ)
Q1: What makes Inconel 625 Square Rods suitable for marine environments?
A: Their high nickel content and molybdenum addition provide excellent resistance to seawater corrosion, especially useful in Tamil Nadu, Puducherry, and Andaman coastal industries.
Q2: Do you export Inconel 625 Square Rods globally?
A: Yes, Rose Metal Industries exports to Europe, Middle East, Africa, and Southeast Asia along with all major Indian states including Karnataka, Telangana, and Andhra Pradesh.
Q3: What is the temperature resistance of Alloy 625?
A: It can withstand temperatures up to 1000°C without losing structural stability.
Q4: Can Inconel 625 Square Rods be welded easily?
A: Yes, they have excellent weldability without requiring post-weld heat treatment.
Q5: What industries commonly use Alloy 625 Square Rods?
A: Aerospace, offshore oil & gas, chemical plants, marine engineering, furnace equipment, and pollution-control systems.
