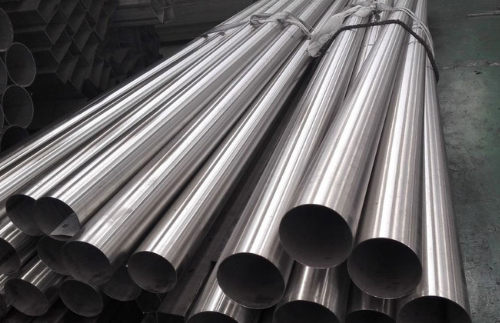

Hastelloy Pipe
Hastelloy pipes supplied by Rose Metal Industries are premium nickel-alloy piping solutions engineered for the most demanding corrosive and high-temperature environments. Manufactured, stocked and exported by Rose Metal Industries, these pipes are available in multiple Hastelloy grades (commonly C-276, C-22, B-2 and related alloys) and are stocked to serve clients across Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry) and the Andaman & Nicobar Islands, as well as international markets. Their combination of corrosion resistance and mechanical integrity makes them a preferred choice for chemical, petrochemical, marine and power industries..
Our Hastelloy pipes are produced to international standards and offered in seamless and welded forms to match project requirements. Typical specifications supplied by Rose Metal Industries follow commonly accepted industry norms (ASTM/ASME equivalents), and we provide a range of schedules, diameters and custom lengths. Pipes are available in pipe-specific product forms with appropriate surface treatments (hot-finished, pickled & passivated, polished) and undergo dimensional and NDT/inspection as requested to ensure fit-for-purpose performance..
Chemically, Hastelloy alloys combine a high nickel base with significant alloying additions such as molybdenum, chromium and sometimes tungsten and cobalt (grade-dependent). This carefully balanced composition gives Hastelloy pipes outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking in both oxidizing and reducing environments — including strong acids, chlorinated media and seawater. That chemical robustness is why Hastelloy piping is specified for aggressive process streams, desalination, and offshore systems..
Mechanically, Hastelloy pipes deliver a useful balance of strength and ductility. Depending on grade and heat treatment, typical tensile and yield strength levels support high-pressure and high-temperature service while maintaining good elongation for fabrication and welding. In practice this means Hastelloy pipes can be formed, welded and integrated into complex systems — heat exchangers, reactors, and process skids — without sacrificing long-term reliability in corrosive service. Rose Metal Industries supplies material with full traceability and test documentation (MTC/PMI) to satisfy engineering and procurement specifications.
✔ Specification of Hastelloy Pipes
| Standard | ASTM B622 / ASTM B619 / ASTM B626 |
| Grades | Hastelloy C22, C276, B2, B3, G30, X |
| Type | Seamless, Welded, ERW, EFW |
| Size | 1/8” NB to 12” NB |
| Thickness | Sch 10S to Sch XXS |
| Length | Single/Double Random, Cut Length |
| Forms | Round, Square, Rectangular |
✔ Chemical Composition of Hastelloy C276
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15 – 17 |
| Chromium (Cr) | 14.5 – 16.5 |
| Iron (Fe) | 4 – 7 |
| Cobalt (Co) | 2.5 max |
| Tungsten (W) | 3 – 4.5 |
| Carbon (C) | 0.01 max |
✔ Mechanical Properties of Hastelloy
| Tensile Strength | 780 MPa (min) |
| Yield Strength | 355 MPa (min) |
| Elongation | 40% (min) |
| Hardness | 95 HRB (max) |
✔ Equivalent Grades
| Hastelloy Grade | UNS | Werkstoff Nr. |
|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 |
| Hastelloy C22 | N06022 | 2.4602 |
| Hastelloy B2 | N10665 | 2.4617 |
✔ Hastelloy Pipe Dimension Chart (NPS)
| NPS | OD (mm) | Wall Thickness (mm) |
|---|---|---|
| 1/2" | 21.3 | 2.77 |
| 1" | 33.4 | 3.38 |
| 2" | 60.3 | 3.91 |
| 4" | 114.3 | 6.02 |
| 6" | 168.3 | 7.11 |
✔ Applications of Hastelloy Pipes
- Chemical Processing Units
- Offshore & Marine Engineering
- Saltwater & Desalination Plants
- Pollution Control Equipment
- Oil & Gas Refinery Pipelines
- Power Generation & Heat Exchangers
- Pharmaceutical & Food Processing
Dimensionally, our range covers small bore to large diameter piping and custom schedules suitable for process, utility and subsea installations. Standard stock sizes and wall thicknesses are available off-the-shelf for rapid delivery, and custom diameter/thickness combinations can be produced or sourced for project requirements. We also support value-added services such as cut-to-length, end-preparation, bevelling, and surface finishing to minimize on-site work and speed installation..
Typical applications for Hastelloy pipes include chemical processing lines (acid/chloride handling), offshore and marine piping, desalination and seawater systems, heat exchangers, petrochemical plants, pharmaceutical process lines and critical utility piping in power and nuclear facilities. With global export capability and regional distribution across Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry and the Andaman & Nicobar Islands, Rose Metal Industries positions itself as a reliable partner for projects that require corrosion-resistant, high-performance piping solutions..
Frequently Asked Questions (FAQ)
Q1: Why choose Hastelloy Pipes for chemical industries?
A: Hastelloy offers exceptional resistance to acids, chlorides, and corrosive chemicals, making it ideal for harsh industrial environments.
Q2: Do you supply Hastelloy Pipes in Tamilnadu, Karnataka, and Andaman?
A: Yes, Rose Metal Industries supplies and exports to Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry, and Andaman & Nicobar Islands.
Q3: What types of Hastelloy Pipes are available?
A: We offer seamless, welded, ERW, and customized Hastelloy pipes in grades C276, C22, B2, and more.
Q4: Are Hastelloy Pipes suitable for marine applications?
A: Yes, Hastelloy provides outstanding seawater and corrosion resistance, perfect for coastal regions like Puducherry and Andaman.
