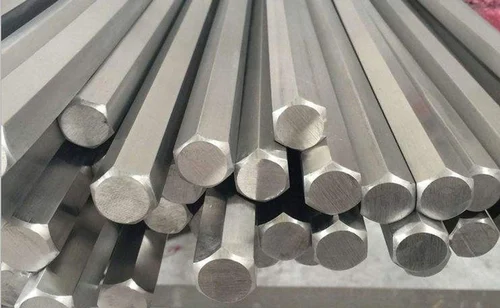

Hastelloy Hexagon Rods
Our rods are widely used in chemical processing equipment, reactors, heat exchangers, valves, marine and offshore components, aerospace parts, and high-performance fabrication applications. Industries across India, including Tamil Nadu’s industrial corridors, Andhra Pradesh’s chemical plants, Karnataka’s aerospace facilities, and Telangana’s power generation units, rely on Rose Metal Industries for high-quality Hastelloy products. Even in coastal regions such as Puducherry and the Andaman & Nicobar Islands, where corrosive environments are prevalent, our Hastelloy rods provide long-lasting performance..
Mechanically, Hastelloy Hexagon Rods demonstrate high tensile strength, excellent yield strength, and superior elongation, ensuring durability under stress. Typical tensile strength ranges from 550–750 MPa, while yield strength lies between 200–380 MPa depending on the alloy and heat treatment. These properties, combined with hardness values of HRB 90–95, make the rods suitable for heavy-duty industrial applications requiring both structural integrity and corrosion resistance..
The chemical composition of Hastelloy Hexagon Rods is carefully controlled to provide exceptional resistance to oxidizing and reducing agents. Key elements include nickel, molybdenum, chromium, iron, and cobalt, which together form a highly stable alloy capable of withstanding highly corrosive environments, including acids, chlorides, and marine atmospheres. This makes our rods ideal for critical applications where both strength and chemical resistance are paramount.
Mechanically, Hastelloy Hexagon Rods demonstrate high tensile strength, excellent yield strength, and superior elongation, ensuring durability under stress. Typical tensile strength ranges from 550–750 MPa, while yield strength lies between 200–380 MPa depending on the alloy and heat treatment. These properties, combined with hardness values of HRB 90–95, make the rods suitable for heavy-duty industrial applications requiring both structural integrity and corrosion resistance..
Specifications & Standards
| Property | Typical / Standard |
|---|---|
| Grades | Hastelloy C-22, C-276, B-2, B-3 |
| Standards | ASTM B575, B670, ASME SB-575, UNS N06022 / N10276 |
| Forms | Hexagon rods, cut-to-length, precision machined |
| Surface Finish | Hot-rolled, bright, polished |
| Testing | Dimensional, tensile, hardness, PMI, MTC |
Chemical Composition (typical ranges)
| Element | Hastelloy C-22 (wt %) | Hastelloy C-276 (wt %) |
|---|---|---|
| Nickel (Ni) | 56 – 62 | 57 – 63 |
| Molybdenum (Mo) | 12 – 14 | 15 – 17 |
| Iron (Fe) | 6 – 14 | 4 – 7 |
| Cobalt (Co) | ≤ 2 | ≤ 2 |
| Carbon (C) | ≤ 0.02 | ≤ 0.02 |
| Manganese (Mn) | ≤ 1 | ≤ 1 |
| Silicon (Si) | ≤ 0.08 | ≤ 0.08 |
| Phosphorus (P) | ≤ 0.03 | ≤ 0.03 |
| Sulfur (S) | ≤ 0.02 | ≤ 0.02 |
| Chromium (Cr) | 20 – 22 | 15.5 – 16.5 |
Mechanical Properties (typical)
| Property | Typical Value | Notes |
|---|---|---|
| Tensile Strength (UTS) | 550 – 750 MPa | Varies with alloy and condition |
| Yield Strength | 200 – 380 MPa | Depends on heat treatment |
| Elongation | 30 – 50% min | High ductility |
| Hardness | HRB 90 – 95 | Varies with product form |
Equivalent Grades & Designations
| Common Name | ASTM / AISI | UNS |
|---|---|---|
| Hastelloy C-22 | ASTM B575 | N06022 |
| Hastelloy C-276 | ASTM B575 | N10276 |
Dimension Chart — Hexagon Rod (Common sizes)
Standard sizes supplied in mm across flats.
| Width Across Flats (mm) | Length (mm) | Tolerance |
|---|---|---|
| 10 – 20 | 1000 – 3000 | ±0.1 – 0.5 mm |
| 25 – 50 | 1000 – 3000 | ±0.2 – 0.8 mm |
| 55 – 100 | 2000 – 3000 | Custom |
| 105 – 150 | Mill / cut | Custom |
Typical Applications
- Chemical processing equipment & reactors
- Marine & offshore components
- Heat exchangers & valves
- Aerospace and power generation parts
- Corrosion-resistant structural applications
- Pumps, fittings, and high-performance fabrication
Hastelloy Hexagon Rods are available in various grades, including Hastelloy C-22, C-276, B-2, and B-3, and are manufactured according to standards such as ASTM B575, B670, and ASME SB-575. These rods are offered in a wide range of dimensions and surface finishes, including hot-rolled, bright, and polished forms, ensuring compatibility with diverse industrial applications. Rose Metal Industries maintains high stock levels to meet both domestic and international demand efficiently..
Rose Metal Industries is a leading manufacturer, stockist, and exporter of Hastelloy Hexagon Rods in India, serving industrial hubs across Tamil Nadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands. Our Hastelloy Hexagon Rods are precision-engineered to meet the stringent requirements of chemical, aerospace, and marine industries. With global standards in mind, we ensure that each rod provides excellent corrosion resistance and long-term durability under aggressive environmental conditions.
Frequently Asked Questions (FAQ)
Q1: What is the difference between Hastelloy C-22 and C-276?
A: C-22 offers better resistance to strong oxidizers while C-276 provides a balanced performance in both oxidizing and reducing environments.
Q2: Do you provide mill test certificates (MTC)?
A: Yes — Rose Metal Industries provides MTCs and can facilitate third-party inspection and chemical analysis on request.
Q3: Can you supply custom hexagon sizes?
A: Yes — We supply Hastelloy Hexagon Rods in custom dimensions, lengths, and tolerances to meet client specifications.
Q4: Which industries use Hastelloy Hexagon Rods?
A: Chemical, marine, aerospace, and power generation industries commonly use these hex rods for their excellent corrosion and heat resistance.
Q5: Are Hastelloy Hexagon Rods suitable for high-temperature applications?
A: Yes — Hastelloy alloys maintain mechanical strength and corrosion resistance at elevated temperatures, making them ideal for high-temperature environments.
