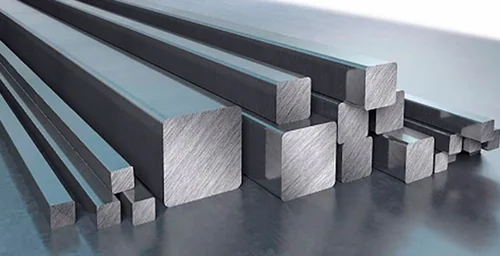

17-4-PH Square Rods
Rose Metal Industries is a trusted manufacturer, stockist, and global exporter of high-quality 17-4 PH Square Rods (UNS S17400 / Grade 630), supplying industrial projects across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and the Andaman & Nicobar Islands as well as to clients worldwide. 17-4 PH stainless steel combines high strength, hardness, and moderate corrosion resistance, making it suitable for marine, petrochemical, aerospace, and heavy engineering applications.
Our 17-4 PH Square Rods are produced with strict quality control using premium raw materials and advanced manufacturing techniques such as hot-rolling, cold-drawing, bright-polishing, and centerless grinding. These rods are available in a wide range of sizes to cater to diverse requirements from industrial fabricators, including applications in Chennai, Hyderabad, Bengaluru, Puducherry, and Port Blair.
After age-hardening heat treatment, 17-4 PH rods achieve exceptional mechanical strength and hardness, making them ideal for load-bearing and high-stress components. Their moderate corrosion resistance ensures long-lasting performance in coastal and chemical environments, making them a preferred choice for industries across Karnataka, Telangana, Andhra Pradesh, and Tamilnadu.
Rose Metal Industries provides customization options including diameters, square sizes, lengths, surface finishes, cut-to-length options, and export-ready packaging. Our products comply with international standards such as ASTM A564, ASTM A276, AMS 5604, and EN 1.4542, ensuring quality, traceability, and suitability for both domestic and overseas projects.
Specifications – 17-4 PH Square Rods
- Grade: 17-4 PH (UNS S17400 / SAE 630 / EN 1.4542)
- Standards: ASTM A564 / A276 / AMS 5604, EN / DIN equivalents
- Forms: Square Rods – hot-rolled, cold-drawn, bright-polished, or ground finish
- Surface Finish: Pickled, polished, shot-blasted, centerless-ground, rough-turned
- Supply Condition: Solution annealed / Age-hardened (H900, H1025, H1150, etc.)
Chemical Composition (Typical wt%)
| Element | Typical Range (%) |
|---|---|
| Chromium (Cr) | 15.0 – 17.5 |
| Nickel (Ni) | 3.0 – 5.0 |
| Copper (Cu) | 3.0 – 5.0 |
| Carbon (C) | ≤ 0.07 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.03 |
| Niobium/Tantalum (Nb+Ta) | 0.15 – 0.45 |
| Balance | Iron (Fe) + residual |
Mechanical Properties (Typical / After Age Hardening)
| Property | Typical Value |
|---|---|
| Ultimate Tensile Strength (UTS) | ≈ 900 – 1300 MPa |
| Yield Strength (0.2% proof) | ≈ 790 – 1000 MPa |
| Elongation (%) | ≈ 10 – 15% |
| Hardness | HRC 30 – 40 (depending on temper) |
Equivalent Grades
| Standard / Code | Designation |
|---|---|
| UNS | S17400 |
| SAE / AISI / ASTM | 17-4 PH / Type 630 |
| WNr / DIN / EN | 1.4542 |
| AMS | AMS 5604 / AMS 5643 |
Dimension Chart – Typical Square Rod Sizes
| Size (mm) | Length (mm) |
|---|---|
| 6×6 – 150×150 | 1000 – 6000 (custom cut to length available) |
| Custom sizes | Available on request per project requirements |
Applications of 17-4 PH Square Rods
- Pump shafts, valve stems, fasteners, gears, and structural pins in chemical, petrochemical, and heavy engineering industries
- Aerospace and marine components requiring high strength and moderate corrosion resistance
- Offshore platforms and coastal infrastructure, including Puducherry and Andaman & Nicobar Islands
- Machinery components exposed to cyclic loading and high stress
- Export-oriented projects globally requiring certified, high-quality 17-4 PH stainless steel rods
Applications of 17-4 PH Square Rods include pump shafts, valve stems, fasteners, structural pins, gears, offshore and marine components, aerospace parts, and machinery components requiring high strength and moderate corrosion resistance. These rods are widely used in coastal and island regions like Puducherry and Andaman & Nicobar Islands, providing reliability and long service life.
Rose Metal Industries ensures every shipment of 17-4 PH Square Rods is accompanied by complete mill test certificates (MTC), PMI / chemical analysis, and optional third-party inspection. With strong domestic supply and global export capabilities, we provide high-quality 17-4 PH square rods to industries across India and worldwide.
Frequently Asked Questions (FAQ)
Q1: Why choose 17-4 PH Square Rods over standard stainless steel?
A: 17-4 PH offers superior strength, hardness, and moderate corrosion resistance compared to austenitic grades, making it ideal for high-stress and load-bearing applications.
Q2: Do you provide MTC and third-party inspection?
A: Yes — Rose Metal Industries provides full mill test certificates, PMI/chemical analysis, and optional third-party inspection.
Q3: Are custom sizes and lengths available?
A: Yes — we offer diameters, square sizes, lengths, and finishes customized to client requirements.
Q4: Are 17-4 PH Square Rods suitable for marine and coastal environments?
A: Yes — they perform well in moderate corrosion environments, including coastal and offshore regions like Tamilnadu, Puducherry, and Andaman & Nicobar Islands.
Q5: Do you export 17-4 PH Square Rods globally?
A: Absolutely — we supply both domestic and international clients with high-quality, export-ready 17-4 PH square rods.
