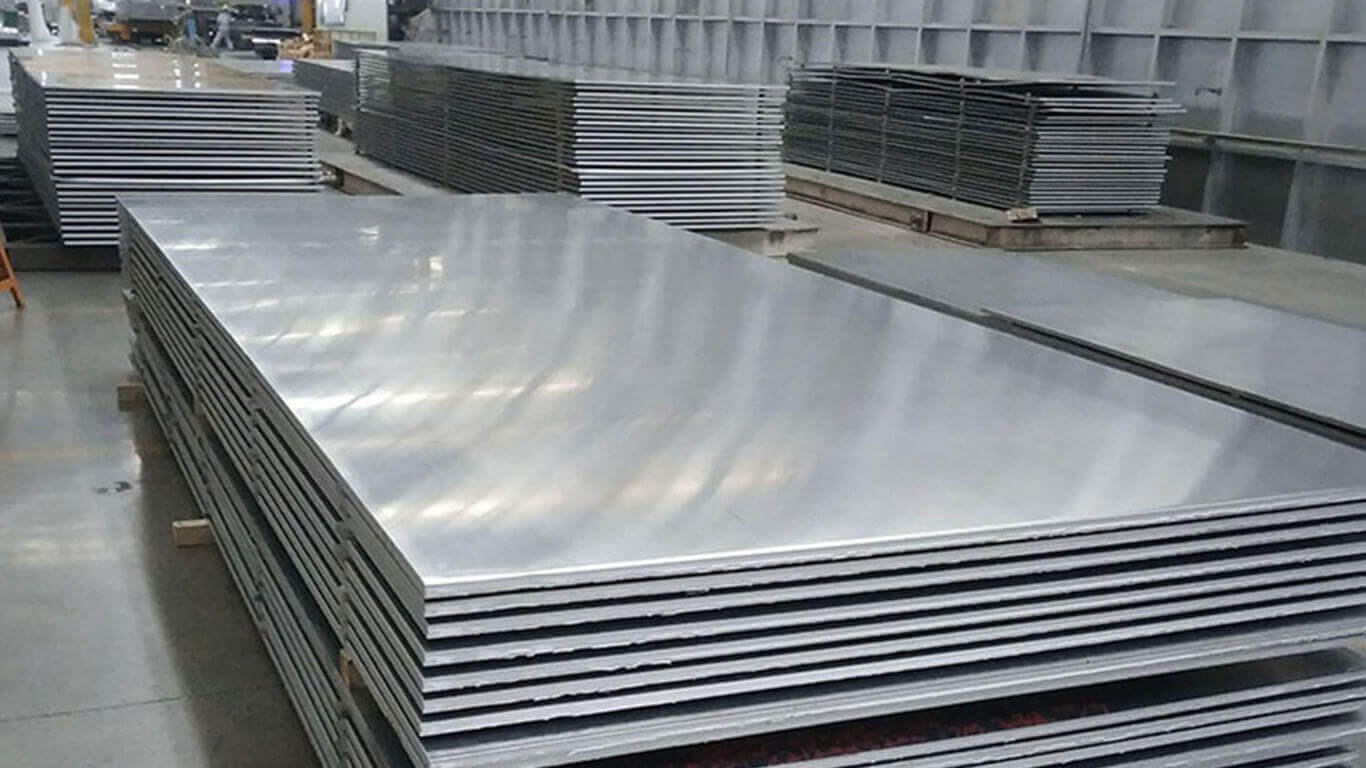

17-4-PH Sheets,Plates and Coils
Rose Metal Industries is a premier manufacturer, stockist and exporter of high-quality 17‑4 PH Sheets, Plates and Coils, serving industrial sectors across Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry (Pondicherry), and Andaman & Nicobar Islands as well as delivering globally. 17‑4 PH (UNS S17400 / Grade 630) is a precipitation‑hardening stainless steel offering a unique balance of high strength, excellent hardness, good toughness and reasonable corrosion resistance — ideally suited for demanding applications where strength, durability and corrosion resistance are required together
Our 17‑4 PH sheets, plates, and coils are manufactured under strict quality control, using premium-grade stainless steel and processed through controlled hot-rolling, pickling, and finishing. We stock these in various thicknesses, widths and coil/plate sizes to suit diverse industrial needs. This ensures rapid availability for customers in major Indian industrial hubs such as Chennai, Hyderabad, Bengaluru, Visakhapatnam as well as coastal and port zones like Puducherry, Mangalore, Port Blair and Andaman & Nicobar Islands.
Due to its precipitation‑hardening nature, 17‑4 PH achieves high tensile and yield strength, good hardness and fatigue resistance after appropriate heat treatment. This makes the sheets, plates, and coils highly suitable for high‑stress structural components, pressure vessel fabrication, heavy-duty panels, flanges, marine and offshore equipment, and mechanical parts requiring a combination of strength and moderate corrosion resistance. Industries in Karnataka, Andhra Pradesh, Tamilnadu, and Telangana frequently use these materials for petrochemical, desalination, power generation, marine and heavy engineering applications.
Rose Metal Industries offers customization services including cutting-to-size plates/sheets, slit coils, polished/ground finishes, cut-edge or mill-edge, custom lengths, and export‑ready packing. Whether the requirement is a large coil for a fabrication shop in Andhra Pradesh, structural plates for a chemical plant in Tamilnadu, or corrosion‑resistant panels for a coastal installation in Andaman & Nicobar, we ensure timely supply with complete documentation and quality assurance
- Grade: 17‑4 PH Stainless Steel (UNS S17400 / SAE 630 / EN 1.4542)
- Standards: ASTM A240 / A480 / A564 / ASME SA240 / SA480, AMS 5604 / AMS 5643, EN / DIN equivalents on request
- Forms: Sheets, Plates, Coils — hot‑rolled, pickled, cold‑rolled, polished or ground finish
- Finish: Mill‑edge or cut‑edge plates, slit coils, polished or brushed surfaces, pickled & passivated as per requirement
- Supply Condition: Solution annealed or age‑hardened (various “H” tempers) per spec and client requirements
Chemical Composition (Typical / Nominal, wt%)
| Element | Typical Range (%) |
|---|---|
| Chromium (Cr) | 15.0 – 17.5 |
| Nickel (Ni) | 3.0 – 5.0 |
| Copper (Cu) | 3.0 – 5.0 |
| Carbon (C) | ≤ 0.07 |
| Niobium + Tantalum (Nb + Ta) | 0.15 – 0.45 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.03 |
| Iron (Fe) | Balance |
Mechanical Properties (Typical / After Age Hardening)
| Property | Typical Value |
|---|---|
| Ultimate Tensile Strength (UTS) | ≈ 900 – 1,300 MPa (depending on temper and thickness) |
| Yield Strength (0.2% Proof) | ≈ 790 – 1,170 MPa |
| Elongation (%) | ≈ 8 – 16% (depending on thickness and temper) |
| Hardness (HRC / Brinell equivalent) | High hardness after heat treatment, hardness depends on temper and thickness |
Equivalent Grades / Designations
| Standard / Code | Designation |
|---|---|
| UNS | S17400 |
| SAE / AISI / ASTM | 17‑4 PH / Type 630 / PH 630 |
| EN / WNr / DIN | 1.4542 (or equivalent EN grade depending on spec) |
| AMS | AMS 5604 / AMS 5643 (for aerospace or high‑spec applications) |
Dimension Chart – Typical Sheet / Plate / Coil Sizes
| Form | Thickness (mm) | Width (mm) | Length / Coil ID |
|---|---|---|---|
| Sheets / Plates | 1.0 – 50 mm (or as per requirement) | 500 – 2000 mm (or more, custom width) | 1000 – 6000 mm (cut‑to‑length available) |
| Coils | 0.8 – 6.0 mm (cold‑rolled or hot‑rolled depending on spec) | 500 – 1500 mm | Coil ID/OD as per standard / customer requirement (export packing available) |
| Custom Plates / Coils | Per project specification | Custom width & length or coil size | Custom cut/ slit / with edge preparation on request |
Applications of 17‑4 PH Sheets, Plates & Coils
- Pressure vessel panels, flanges, shell plates in chemical, petrochemical, power and desalination plants
- Marine & offshore structural panels, deck plates, corrosion‑resistant housings for coastal and island installations (suitable for Andaman & Nicobar, Puducherry coastal zones)
- Pump housings, valve bodies, pressure equipment housings, and structural supports in heavy engineering and machinery
- Fabrication of high‑strength, corrosion‑resistant fabrications for refineries, desalination plants, marine installations, and chemical processing units in Tamilnadu, Andhra Pradesh, Karnataka, Telangana regions
- Export‑oriented fabrication, equipment manufacturing, heavy-duty panels and components for global clients
- Aerospace, marine, and specialized industrial applications requiring high strength-to-weight, corrosion resistance, and longevity under cyclic or harsh conditions
The versatility and performance of 17‑4 PH Sheets, Plates & Coils make them suitable for a wide range of applications: pressure vessel panels, pump housings, marine and offshore structural parts, heavy equipment housings, flanges and structural supports, marine deck components, chemical and petrochemical plant components, and general heavy fabrication. Their strength-to-weight advantage and resilience under load and corrosive environments make them a preferred choice across industries and geographies.
Committed to delivering international quality, Rose Metal Industries provides full mill test certificates (MTC), chemical composition reports, heat-treatment records and optional third‑party inspection. With a strong distribution network across South India — including Tamilnadu, Andhra Pradesh, Karnataka, Telangana, Puducherry and Andaman & Nicobar Islands — and global export capability, we ensure reliable supply, traceability and long-term performance for all 17‑4 PH sheet, plate and coil orders..
Frequently Asked Questions (FAQ)
Q1: What makes 17‑4 PH sheets/plates/coils different from standard stainless steels?
A: 17‑4 PH offers precipitation‑hardening capability, which results in high tensile strength, good hardness and fatigue resistance — along with reasonable corrosion resistance — making it superior to standard austenitic stainless steels when strength and durability are critical.
Q2: Do you supply mill test certificates (MTC) and quality documentation?
A: Yes — Rose Metal Industries provides full MTCs (UNS / ASTM / EN / AMS as required), heat‑treatment records, chemical analysis and optional third‑party inspection for export or critical applications.
Q3: What sheet/plate/coils sizes are available and can you provide custom cut-to-size?
A: Yes — we maintain a wide range of thicknesses (from thin coils to heavy plates), widths and lengths/coils, and offer custom cut-to-size or slit-coil services as per project requirements.
Q4: Are 17‑4 PH plates/coils suitable for marine, offshore and coastal applications (for Tamilnadu, Puducherry, Andaman & Nicobar)?
A: Yes — 17‑4 PH provides a good balance of strength and corrosion resistance, making it suitable for many marine, offshore and coastal installations, especially where high strength and durability under load are required.
Q5: Do you export 17‑4 PH sheets, plates & coils globally?
A: Absolutely — Rose Metal Industries caters to both domestic customers across South India and global clients worldwide, delivering export‑ready 17‑4 PH materials with complete certification, packaging and reliable logistics.
