Buttweld Fitting >> Stub-ends

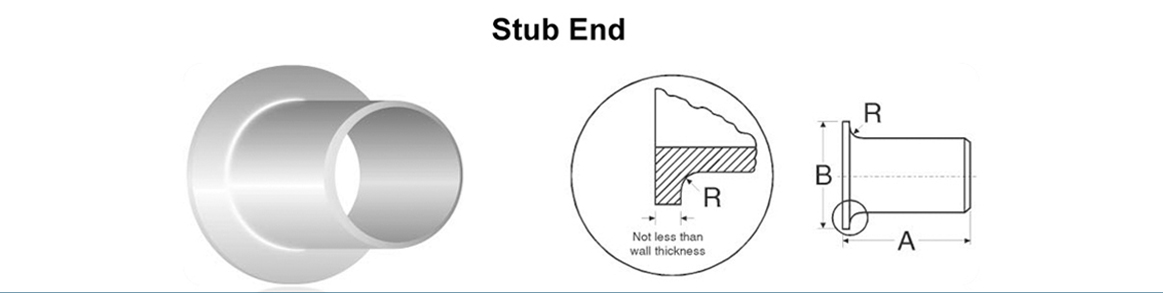

Common Long Pattern Short Pattern Diameter of Lap Radius of Fillet OD of Barrel

Nominal Pipe Size

(Inches)

OD at Bevel A A B R OD
Max Min
in mm in mm in mm in mm in mm in mm in mm

1/2

0.84

21

3

76

2

51

1.38

35

0.12

3

0.9

23

0.81

21

3/4

1.05

27

3

76

2

51

1.69

43

0.12

3

1.11

28

1.02

26

1

1.32

33

4

102

2

51

2

51

0.12

3

1.38

35

1.28

33

1-1/4

1.66

42

4

102

2

51

2.5

64

0.19

5

1.72

44

1.63

41

1-1/2

1.9

48

4

102

2

51

2.88

73

0.25

6

1.97

50

1.87

47

2

2.38

60

6

152

2.5

64

3.62

92

0.31

8

2.46

62

2.34

60

2-1/2

2.88

73

6

152

2.5

64

4.12

105

0.31

8

2.97

75

2.84

72

3

3.5

89

6

152

2.5

64

5

127

0.38

10

3.6

91

3.47

88

3-1/2

4

102

6

152

3

76

5.5

140

0.38

10

4.1

104

3.97

101

4

4.5

114

6

152

3

76

6.19

157

0.44

11

4.59

117

4.47

114

5

5.56

141

8

203

3

76

7.31

186

0.44

11

5.68

144

5.53

141

6

6.62

168

8

203

3.5

89

8.5

216

0.5

13

6.74

171

6.59

168

8

8.62

219

8

203

4

102

10.62

270

0.5

13

8.74

222

8.59

218

10

10.75

273

10

254

5

127

12.75

324

0.5

13

10.91

277

10.72

272

12

12.75

324

10

254

6

152

15

381

0.5

13

12.91

328

12.72

323

14

14

356

12

305

6

152

16.25

413

0.5

13

14.17

360

13.97

355

16

16

406

12

305

6

152

18.5

470

0.5

13

16.18

411

15.97

406

18

18

457

12

305

6

152

21

533

0.5

13

18.19

462

17.97

456

20

20

508

12

305

6

152

23

584

0.5

13

20.24

514

19.97

507

22

22

559

12

305

6

152

25.25

641

0.5

13

22.24

565

21.97

558

24

24

610

12

305

6

152

27.25

692

0.5

13

24.24

616

23.97

609
