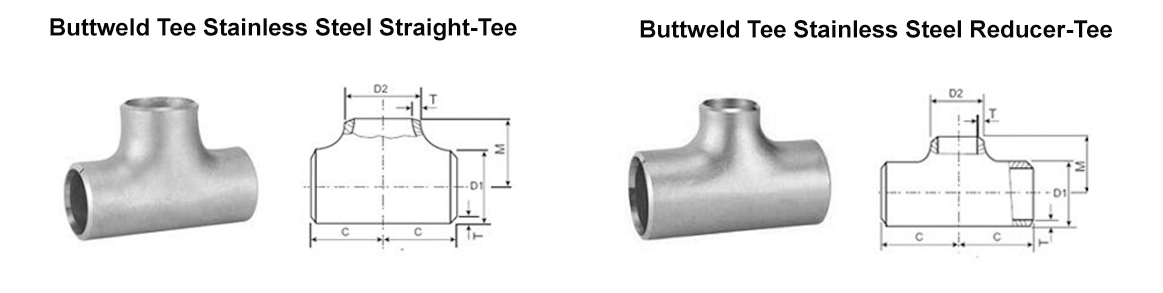

Buttweld Fitting >> Tee

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series A "C" "M"
(Inches) (mm) (mm) (mm) (mm)

15×15×15

1/2 × 1/2 ×1/2

21.3

21.3

25

25

15×15×10

1/2×1/2×3/8

21.3

17.3

25

25

15×15×8

1/2×1/2×1/4

21.3

13.7

25

25

20×20×20

3/4×3/4×3/4

26.9

26.9

29

29

20×20×15

3/4×3/4×1/2

26.9

21.3

29

29

20×20×10

3/4×3/4×3/8

26.9

17.3

29

29

25×25×25

1×1×1

33.7

33.7

38

38

25×25×20

1×1×3/4

33.7

26.9

38

38

25×25×15

1×1×1/2

33.7

21.3

38

38

32×32×32

1.1/4×1.1/4×1.1/4

42.4

42.4

48

48

32×32×25

1.1/4×1.1/4×1

42.4

33.7

48

48

32×32×20

1.1/4×1.1/4×3/4

42.4

26.9

48

48

32×32×15

1.1/4×1.1/4×1/2

42.4

21.3

48

48

40×40×40

1.1/2×1.1/2×1.1/2

48.3

48.3

57

57

40×40×32

1.1/2×1.1/2×1.1/4

48.3

42.4

57

57

40×40×25

1.1/2×1.1/2×1

48.3

33.7

57

57

40×40×20

1.1/2×1.1/2×3/4

48.3

26.9

57

57

40×40×15

1.1/2×1.1/2×1/2

48.3

21.3

57

57

50×50×50

2×2×2

60.3

60.3

64

64

50×50×40

2×2×1.1/2

60.3

48.3

64

60

50×50×32

2×2×1.1/4

60.3

42.4

64

57

50×50×25

2×2×1

60.3

33.7

64

51

50×50×20

2×2×3/4

60.3

26.9

64

44

65×65×65

2.1/2×2/1/2×2.1/2

73

73

76

76

65×65×50

2.1/2×2/1/2×2

73

60.3

76

70

65×65×40

2.1/2×2/1/2×1.1/2

73

48.3

76

67

65×65×32

2.1/2×2/1/2×1.1/4

73

42.4

76

64

65×65×25

2.1/2×2/1/2×1

73

33.7

76

57

80×80×80

3×3×3

88.9

88.9

86

86

80×80×65

3×3×2.1/2

88.9

73

86

83

80×80×50

3×3×2

88.9

60.3

86

76

80×80×40

3×3×1.1/2

88.9

48.3

86

73

80×80×32

3×3×1.1/4

88.9

42.4

86

70

90×90×90

3.1/2×3.1/2×3.1/2

101.6

101.6

95

95

90×90×80

3.1/2×3.1/2×3

101.6

88.9

95

92

90×90×65

3.1/2×3.1/2×2.1/2

101.6

73

95

89

90×90×50

3.1/2×3.1/2×2

101.6

60.3

95

83

90×90×40

3.1/2×3.1/2×1.1/2

101.6

48.3

95

79

100×100×100

4×4×4

114.3

114.3

105

105

100×100×90

4×4×3.1/2

114.3

101.6

105

102

100×100×80

4×4×3

114.3

88.9

105

98

100×100×65

4×4×2.1/2

114.3

73

105

95

100×100×50

4×4×2

114.3

60.3

105

89

100×100×40

4×4×1.1/2

114.3

48.3

105

86

125×125×125

5×5×5

141.3

141.3

124

124

125×125×100

5×5×4

141.3

114.3

124

117

125×125×90

5×5×3.1/2

141.3

101.6

124

114

125×125×80

5×5×3

141.3

88.9

124

111

125×125×65

5×5×2.1.2

141.3

73

124

108

125×125×50

5×5×2

141.3

60.3

124

105

150×150×150

6×6×6

168.3

168.3

143

143

150×150×125

6×6×5

168.3

141.3

143

137

150×150×100

6×6×4

168.3

114.3

143

130

150×150×90

6×6×3.1/2

168.3

101.6

143

127

150×150×80

6×6×3

168.3

88.9

143

124

150×150×65

6×6×2.1/2

168.3

73

143

121

200×200×200

8×8×8

219.1

219.1

178

178

200×200×150

8×8×6

219.1

168.3

178

168

200×200×125

8×8×5

219.1

141.4

178

162

200×200×100

8×8×4

219.1

114.3

178

156

200×200×90

8×8×3.1/2

219.1

101.6

178

152

250×250×250

10×10×10

273

273

216

216

250×250×200

10×10×8

273

219.1

216

203

250×250×150

10×10×6

273

168.3

216

194

250×250×125

10×10×5

273

141.3

216

191

250×250×100

10×10×4

273

114.3

216

184

300×300×300

12×12×12

323.9

323.9

254

254

300×300×250

12×12×10

323.9

273

254

241

300×300×200

12×12×8

323.9

219.1

254

229

300×300×150

12×12×6

323.9

168.3

254

219

300×300×125

12×12×5

323.9

141.3

254

216

350×350×350

14×14×14

355.6

355.6

279

279

350×350×300

14×14×12

355.6

323.9

279

270

350×350×250

14×14×10

355.6

273

279

257

350×350×200

14×14×8

355.6

219.1

279

248

350×350×150

14×14×6

355.6

168.3

279

238

400×400×400

16×16×16

406.4

406.4

305

305

400×400×350

16×16×14

406.4

355.6

305

305

400×400×300

16×16×12

406.4

323.9

305

295

400×400×250

16×16×10

406.4

273

305

283

400×400×200

16×16×8

406.4

219.1

305

273

400×400×150

16×16×6

406.4

168.3

305

264
